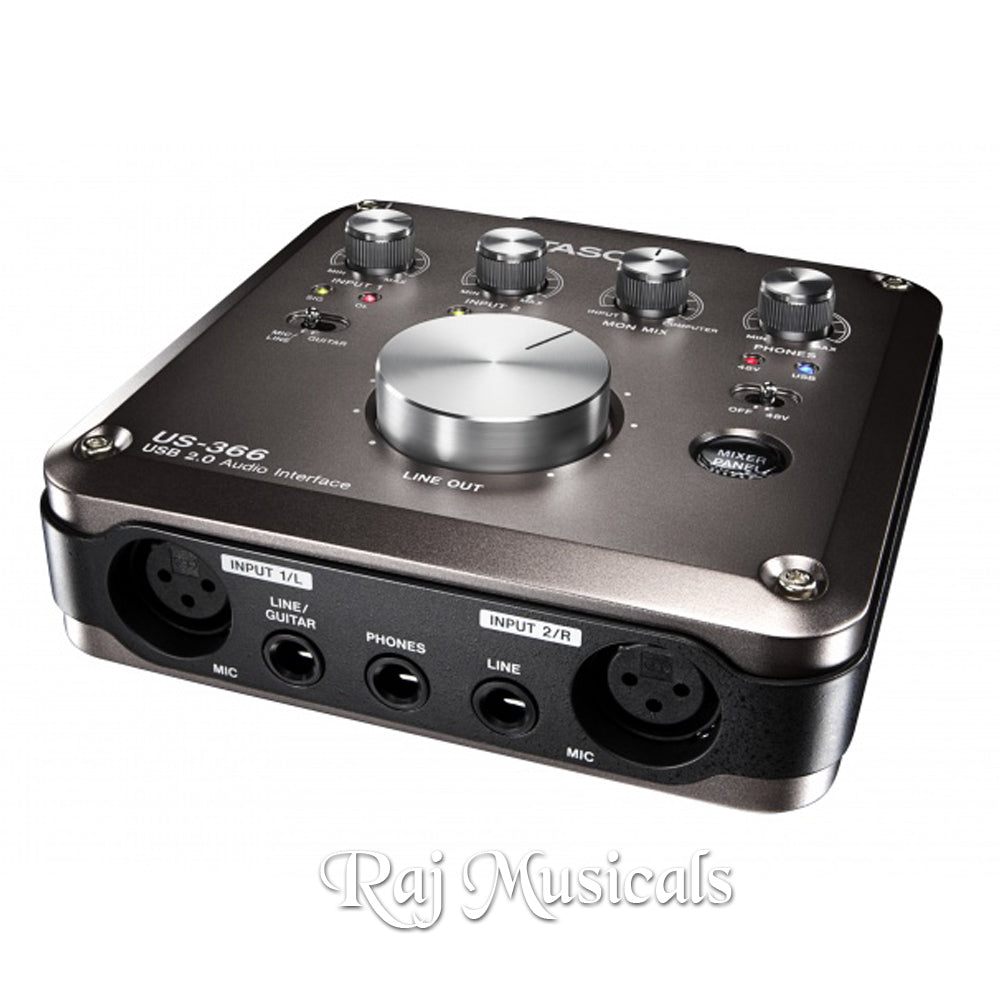

TASCAM US-366 USB AUDIO INTERFACE
Description
Description
The US-366 provide low-latency monitoring via the on-board digital mixer. Volume can be monitored and adjusted easily with the dedicated knob on the top-panel.
The DSP Mixer Has Two Operational Modes Designed for Music Creation and Podcasting. The DSP mixer function provides a multi-track mode and a stereo-mix mode.
This oversized volume knob can be an integral setting for easy and speedy fine level adjustments.
The US-366's LINE 3-4 connectors can be selected between input and output to customize TASCAM's US-366 to any recording environment. When "INPUT" is selected, you can connect an abundance of line-level audio devices. When selecting "OUTPUT", connect to devices such as multiple headphone amplifiers. This system provides dedicated monitoring management for each player.
The US-366 has two types of digital input/output connectors (RCA Coaxial and TOS-link Optical). Two outputs can transmit the same signal at the same time but when input is selected, only one connector is available at a time.
Tascam US 366 Features:-
High-quality HDDAHigh Definition Discrete Architecture) mic pre-amps
Up to 24bit/96kHz recording(US-366 supported 24bit/192kHz recording)
Two XLR/TRS (MIC/LINE) inputs with full +48V phantom power supply
Low-latency monitoring via DSP mixer
On-board digital mixer(DSP mixer) delivers two operation modes
On-board digital effects(DSP effects)(DSP effects can use on 44.1/48kHz operating)
Dedicated "MIXER PANEL" button recalls DSP mixer with one-click
Oversized LINE OUT volume knob
Two TRS analog balanced outputs
Two RCA analog unbalanced outputs
18mW+18mW headphone output
Desktop design provides highly stability and usability
Aluminum body provides premium looks and luxurious feel
USB bus-powered for mobile recording
Up to 24bit/192kHz recording
LINE 3-4 connectors can select between input or output, up to six inputs or six outputs
Coaxial/Optical digital input and output
44.1/48/88.2/96/176.4/192kHz Supported sampling frequency
MIC IN
(INPUT 1/L, 2/R) XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance 2.2kohms
Nominal input level
(INPUT:MAX) -65dBu
Nominal input level
(INPUT:MIN) -22dBu
Maximum input level
(INPUT:MIN) -6dBu
LINE IN
(INPUT 1/L, 2/R) 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Input impedance 15kohms(LINE)/1Mohms(GUITAR)
Nominal input level
(INPUT:MAX) -39dBu(LINE)/-55dBV(GUITAR)
Nominal input level
(INPUT:MIN) +4dBu(LINE)/-12dBV(GUITAR)
Maximum input level
(INPUT:MIN) +20dBu(LINE)/+4dBV(GUITAR)
LINE IN
(LINE I/O 3-4) RCA pin-jack(When set to "INPUT" at LINE I/O switch)
LINE OUT
(LINE OUT 1/L, 2/R) 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
USB
Connector USB B type 4-pin
Format USB2.0 HIGH SPEED mass storage class
REMOTE
Connector 2.5mm TRS-jack
Power USB bus powered (5V, Max 500mA)
ADC chip set dynamic range 102dB *1
Frequency response
Mic preampr 10Hz to 68kHz, +0.5/-3.0dB
MIC IN to LINE OUT 10Hz to 68kHz, +0.5/-3.0dB
MIC IN to PHONES 10Hz to 30kHz, +0.5/-1.0dB
