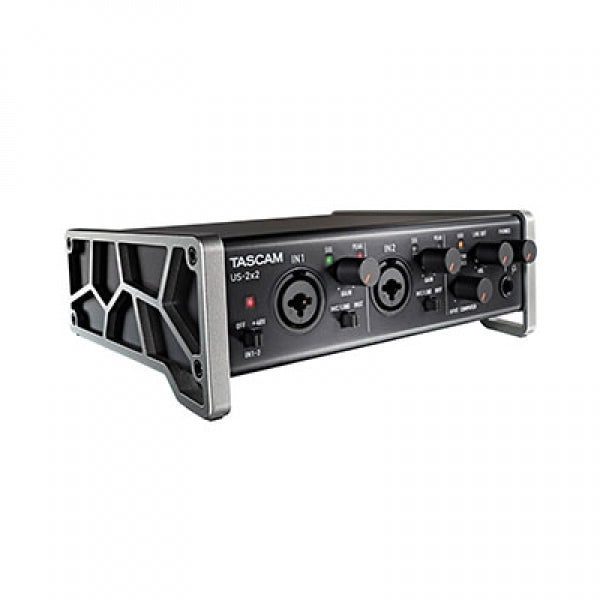

TASCAM US-2X2 2-IN/2-OUT USB AUDIO INTERFACE

TASCAM’s US-2x2 combines great audio quality and ergonomic design for a powerful 2-in/2-out USB 2 Audio interface.

Two of TASCAM’s Ultra-HDDA mic/line preamps provide up to 57dB of gain with nearly inaudible noise and distortion specs. The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source.

The US-2x2 includes class-compliant drivers for plug-and-play operation on Mac OSX and iOS devices like the iPad, and a simple driver adds ASIO compatibility for Windows. MIDI in and out are also included for connecting synths, drum machines, and controllers.

With solid audio specs, iOS compatibility, and an easy-to-read angled design, the US-2x2 is the ultimate 2-channel interface for home, project, and mobile studios.

New Update: Settings Panel for Windows

TASCAM USB Audio Interfaces Driver (Settings Panel) software for Windows has been updated to Version 4.00, enabling to build music production environments with ultra-low latency that maximizes the processing power of the computers in use. In this new version, the driver’s stability has been greatly enhanced, the audio buffer size is now selectable up from 4 samples instead of older versions with the default buffer size of 64 samples, and overall usability has been improved.

Ultra-HDDA Mic Preamps for Clear Audio Quality from All of Your Mics

TASCAM's own Ultra-HDDA mic preamps are the cleanest, quietest, and best-sounding from any interface in their range. A gain range of 57dB makes them ideal for any type of mic – dynamic, condenser, or ribbon. With preamp performance well beyond any interfaces in their price range, the Ultra-HDDA preamps on the US-2x2 makes your tracks sound like a record.

Simple Operation and an All-New USB Driver

TASCAM makes installing the US-2x2 a snap, whether usnig the built-in class-complient driver or the high-performance ASIO or Core Audio drivers. TASCAM started from scratch on the software, developing them in-house through extensive testing, resulting in our most robust drivers ever.

Also included with the driver software is a simple-to-use on-screen control panel, which monitors and adjusts critical interface settings.

FEATURES
Two Ultra-HDDA (High Definition Discrete Architecture) mic preamplifiers
Up to 96kHz/24-bit recording
USB bus-powered for mobile recording
Connect with iPads and other iOS devices
Two switchable high-impedance inputs
18mW/ch headphone output
Two TRS analog balanced outputs
+48V phantom power for all inputs
NE5532 op-amps used at the audio input and output stages
MIC IN :- IN 1-2
Connector :- XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Maximum input level(GAIN:MIN ) :- +8dBu (1.9467Vrms)
INST IN :-IN 1-2
Connector :-6.3mm(1/4")TS-jack(T：HOT, S：GND), UNBALANCED(When set to "INST" at MIC/LINE.INST switch)
LINE IN :-IN 1-2
Connector :-6.3mm(1/4")TRS-jack(T：HOT, R：COLD, S：GND), BALANCED(When set to "MIC/LINE" at MIC/LINE.INST switch)
LINE OUT Connector :-6.3mm(1/4")TRS-jack(T：HOT, R：COLD, S：GND), BALANCED
PHONES Connector :- 6.3mm(1/4") stereo phone jack
Maximum output level :-18mW+18mW or more(THD+N 0.1% or less, 32ohms loaded)
MIDI IN / OUT Connector :- Din 5-pin
USB Connector :- USB B type 4-pin
Power When connected PC :-USB bus powered
When connected iOS :- AC Adapter(TASCAM PS-P520, sold separately)
Power consumption :- 2.5W
Dimensions :- 7.32" W ×2.56" H ×6.3" D (186mm W x 65mm H x 160mm D)
AVAILABLE AT Royelite WITH ONE YEAR WARRANTY

Warranty : 1-Year

Origin of product : N/A
