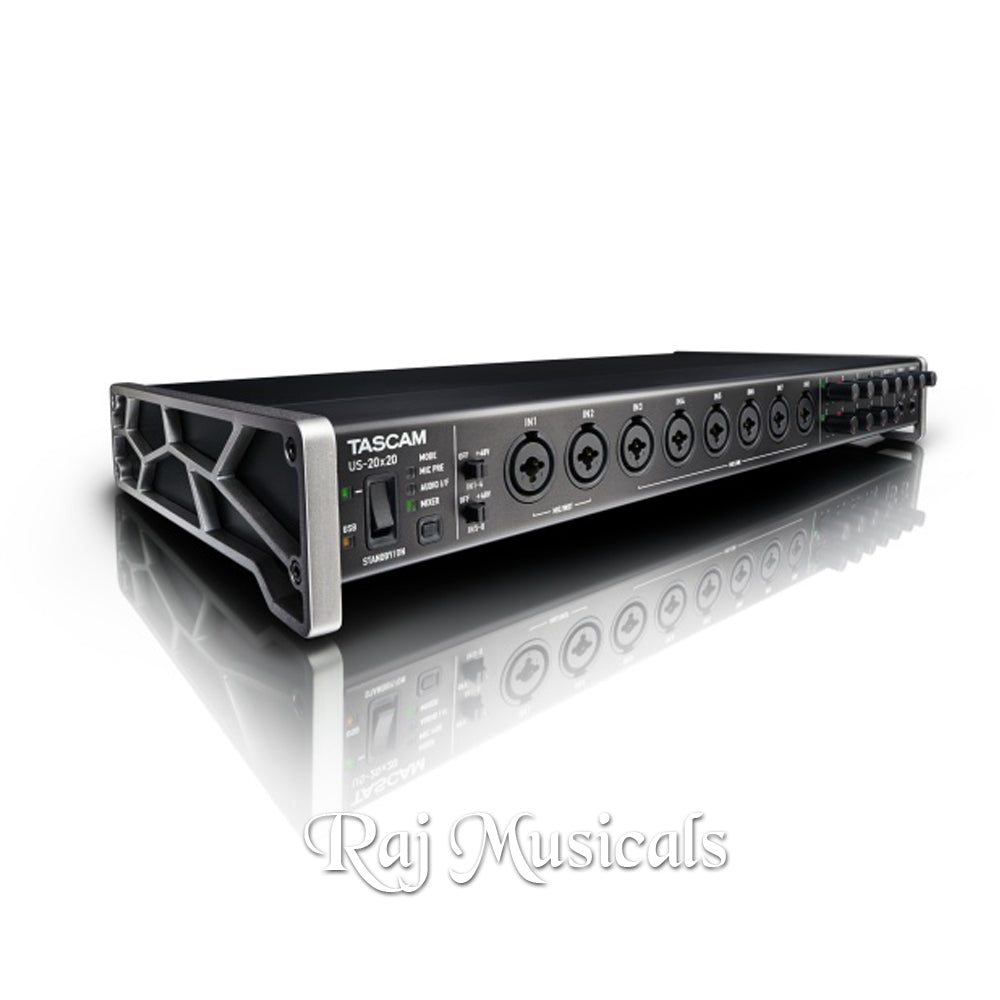

TASCAM US-20X20 USB AUDIO MIDI INTERFACE

TASCAM’s Celesonic US-20x20 packs 20 channels of analog and digital I/O into a single rackspace with great sounding preamps and USB 3.0/2.0 connectivity. Eight Ultra-HDDA microphone preamps provide 56dB of gain and high headroom to make microphones sound their best. Up to ten channels of digital I/O are included on ADAT and S/PDIF connectors, with word clock also provided for use with external clocks like TASCAM’s CG-1000. MIDI I/O allows use with controllers and synthesizers, and sample rates up to 192kHz/24-bit are supported.

The TASCAM Celesonic US-20x20 is the first USB 3.0 interface to use class-compliant drivers for future-proof use with computers and tablets. A built-in DSP mixer includes parametric EQ and compression on every channel and a stereo reverb send for great-sounding monitor mixes. The DSP mixer can also be used as a live mixer or submixer with computer control. The US-20x20 has three operation modes – audio interface, digital mixer, and 8-channel digital mic preamp –for maximum flexibility.

Tascam US 20X20 Features
Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −125dBu EIN
Eight Ultra-HDDA micpres with XLR/TRS and connector, two TRS inputs
3 mode switching of Interface/Mic preamp/Mixer
Up to 192kHz/24-bit recording
Support for Windows and Mac
USB 3.0/2.0 computer connection (USB3.0 requires Windows 10 or OSX 10.11.2 (or later))
Connect with iPads and other iOS devices
+48V phantom power for all inputs
High-impedance inputs available
Input level specifications boast a range of 56 dB for using dynamic mics
Tough metal casing for durability
Angled design provides excellent usability on a desktop
Two standard TRS headphones output jack with 70mW + 70mW output power
Separate controls for line and headphones output volumes
MIDI input and output
Low-latency monitoring via on-board DSP mixer
DSP mixer with 4-band EQ and compression on each input channel(Can be used in Interface/Mixer mode)
On-board Reverb effect ideal for monitoring on interface mode or PA/SR on mixer mode
Patch bay allows outputs to be assigned freely(Can be used in Interface/Mixer mode)
Scenes can store DSP mixer settings (up to 10+1 scenes can be stored and named）
Ten TRS analog outputs
S/PDIF coaxial digital input/output connectors
TOS LINK optical digital multichannel input/output connectors (supporting SMUX2 and SMUX4)
BNC word clock input/output connectors
USB class compliant 2.0 support
Confirmed operation with major DAW software (SONAR, Pro Tools, Cubase, Live, Studio One, GarageBand）
Sampling frequency

USB2.0 44.1k/48k/88.2k/96k Hz

MIC IN (BALANCED) IN 1-8

Connector XLR-3-31(1:GND, 2:HOT, 3:COLD)

Input impedance 2.4k ohms

INST IN (UNBALANCED) IN 1-2

Connector 6.3mm(1/4") TS-jack(T:HOT, S:GND) (When set to "INST" at LINE/INST switch)

LINE IN (BALANCED) IN 3-8

Connector 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND)

LINE IN (UNBALANCED) IN 9-10

Connector 6.3mm(1/4") TS-jack(T:HOT, S:GND) (When set to "-10dBV" at LEVEL switch)

Digital audio inputs COAXIAL
Connector RCA pin jack
Format IEC60958-3(S/PDIF)
Input impedance 75 ohm
Input level 0.5Vp-p / 75 ohm
USB Connector USB3.0/2.0 B type
Format USB3.0 SuperSpeed (5Gbps)/USB2.0 HIGH SPEED (480Mbps)
PHONES
Connector 6.3mm(1/4") stereo phone jack
Maximum output level 70mW+70mW or more (THD+N 0.1% or less, 32ohms loaded)
Power consumption 20W
AVAILABLE AT Royelite WITH ONE YEAR WARANTY

Warranty : 1-Year

Origin of product : N/A
