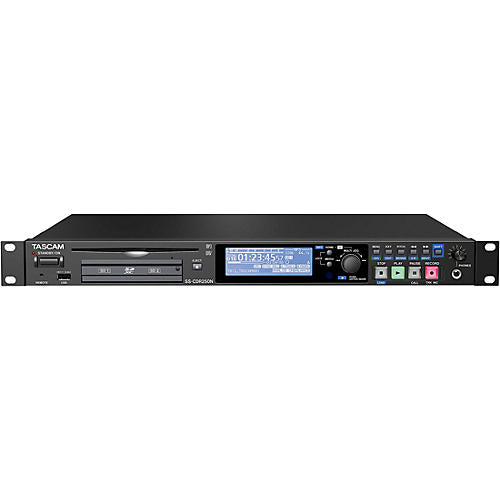

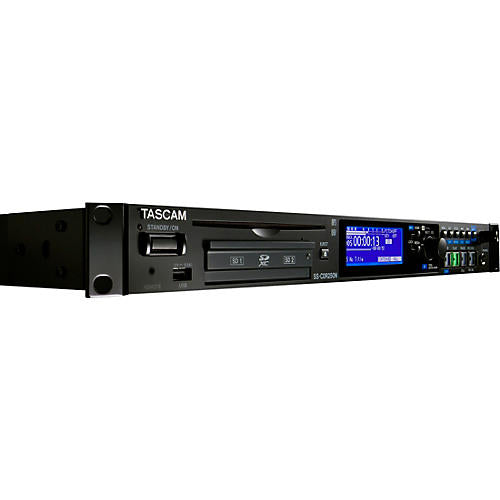

TASCAM SS-CDR250N Solid State Recorder With Dual SD and CDR

Next-generation 2-channel networking CD/Media recorder.
The TASCAM SS-CDR250N is a two-channel CD/solid-state recorder for network applications with a variety of remote control options. An FTP client function is included—enabling the automatic uploading and downloading of recorded files.

Dante Domain Manager
The SS-CDR250N is the ideal SD card recorder/player with CD recorder, having a variety of features with extensive terminal equipment applications and business applications. An FTP client function is added, which enables the exchanges of sound source data with others via server communication. You can also keep the starting time accurate for recording and playback based on time management via SNTP.

The SS-CDR250N is equipped with a LAN terminal, so you can have a network connection. When using as an FTP client, you can upload recorded files from the SS-CDR250N side or download sound files from the server. Since the unit also acts as an FTP server, you can also upload/download from the PC side. Without having to physically exchange SD cards, this is a safer and more convenient file management system.

Event List for Rec, Play, Download
The SS-CDR250N's Event List function has an auto-play feature for audio files such as background music and announcements—useful in retail stores and restaurants. Utilize the event lists for scheduled recording, playback, downloading and other events. By combining playback events with download events, audio files can be automatically retrieved from a server for playback. The function also enables centralized file management from corporate headquarters to multiple locations—perfect for playing files simultaneously in chain stores.

Time Setting via SNTP Client
Make an event list plays based on the time you set. The SNTP Client function enables you to obtain time information regularly from the server in order to keep time accurate.
Automatic Upload enables recorded files to be uploaded automatically

After recording, the recorded data can be automatically uploaded to the specified server. You can archive recorded data without extra time-consuming work. Meetings or lectures on regular basis can be recorded and uploaded automatically for file archive. Since the file uploading takes place in the background, it does not disturb your recording/playback work.

A dedicated TASCAM SS250 CONTROL app is available for free download. This app is for iOS/Android, and is available at the App Store and on Google Play. For Windows/Mac, the app can be downloaded directly from the TASCAM website.

Features
Network/Control Functions
FTP Client function enables automatic uploading of recorded files or downloading audio files from the server
Event List for recording, playback, download and other functions can be operated automatically based on the time set
Time setting via SNTP Client function enables event management with more accuracy
Automatic Upload function enables recorded files to be uploaded automatically
iOS/Android/Windows/Mac control apps available: allowing transport operations and remote control of various settings
The IF-DA2 interface card supporting Dante 2ch input and output can be installed (sold separately)
Serial and parallel port connections
RC-SS150 Flash Start control unit with the a color LCD screen (sold separately)
Optional RC-3F footswitch can be connected to the RC-20 remote control (sold separately)
Recording Capabilities
Supports recording and playback of high-resolution files up to 96kHz/24-bit
Dual SD memory card slot permits mirror and relay recording
Auto mark function: When an error occurs or input level overloads, the time point will be marked automatically
PRE REC function to prevent any missing part in your recording
Auto track function automatically trims the tracks
Compressor and limiter included
Auto level control function automatically adjusts the input level for recording
Starts recording as soon as the unit is turned on with Power-on-record function
Microphone input connector with phantom power supply
Direct recording function enables the recording starts right away without any standby
Playback Functions
Call function that saves the position where your last playback starts
Playback modes such as Program, Random and Single
Ducking function automatically adjusts the playback volume while the input level increases or decreases
All repeat/A-B repeat function
Incremental play function to transport to the beginning of the next track
Monaural mix playback function
Auto Cue function tracks the first sound in the playback for standby
Auto ready function allows a standby before the next track begins
Pitch control and key control function for speed and key adjustments
Can set the mark at any position
EOM (End of message) notification available before the track ends
Other Features
Sampling rate converter for inputs and outputs are available
Link playback function allows two units to be operated at the same time
Automatic file closing process to avoid data loss if there is a sudden power loss during recording
User presets: Up to three sets of optional settings can be stored for such things as switching input and output, sampling rate selection and other functions
1U rackmount size

Order for your setup today.


SS-CDR250N Solid State Recorder With Dual SD and CDR Specifications:
Audio, Media and Formats
Frequency Response: 20Hz–20kHz ±0.5dB
Signal to Noise Ratio: 95dB or more
Dynamic Range: 95dB
Distortion: 0.005% or less
Channel Crosstalk: 95dB
Supported Media: SD (512MB to 2GB)
SDHC (4GB to 32GB)
SDXC (up to 128GB) card
USB memory (512MB to 64GB)
CD-R, CD-R-DA, CD-RW, CD-RW-DA
Recording Formats: WAV: Stereo/Mono, 44.1/48/96kHz, 16/24-bit
MP3: Stereo/Mono, 44.1/48kHz, 64 to 320 kbps
CD-DA: Stereo, 44.1kHz
Playback Formats: WAV: Stereo/Mono, 44.1/48/96kHz, 16/24-bit
MP3: Stereo/Mono, 44.1/48kHz, 64 to 320 kbps
CD-DA: Stereo, 44.1kHz
Number of Channels: 2 mono, 1 stereo
Analog Inputs
Connector: 3-pin XLR (1: GND, 2: HOT, 3: COLD)
Standard Input Level: +4dBu (1.23 Vrms)
Maximum Input Level: +20dBu (7.75 Vrms)
Minimum Input Level: -10dBu (0.25 Vrms) or more
Input Impedance: 22 kohms
Connector: Unbalanced:
RCA pin jacks
Standard Input Level: -10 dBV (0.316 Vrms)
Maximum Input Level: +6 dBV (2.0 Vrms)
Minimum Input Level: -24 dBV (0.06 Vrms) or more
Input Impedance: 22 kohms
Analog Outputs
Connector: Balanced
3-pin XLR (1: GND, 2: HOT, 3: COLD)
Standard Output Level: +4dBu (1.23 Vrms)
Maximum Output Level: +20dBu (7.75 Vrms)
Output Impedance: 100 ohms
Connector: Unbalanced
RCA pin jacks
Standard Output Level: -10dBV (0.316 Vrms)
Maximum Output Level: +6dBV (2.0 Vrms)
Output Impedance: 200 ohms
Headphones
Connector: 1/4" (6.3 mm) stereo jack
Maximum Output: 45 mW + 45 mW (into 32 ohms load, 0.1% distortion)
Digital Inputs
Connector: 3-pin XLR and RCA jacks
Formats: IEC60958-3 (S/PDIF), AES3-2003/IEC60958-4 (AES/EBU)
Input Frequency: 32Hz to 96kHz
Digital Outputs
Connectors: 3-pin XLR and RCA jacks
Formats: IEC60958-3 (S/PDIF), AES3-2003/IEC60958-4 (AES/EBU)
