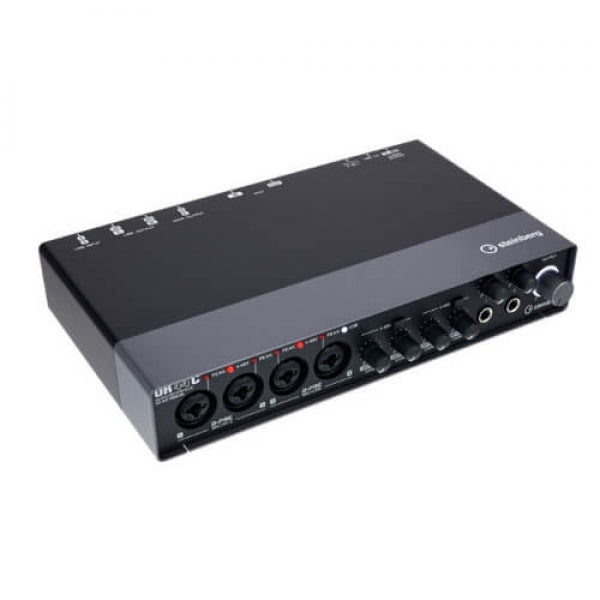

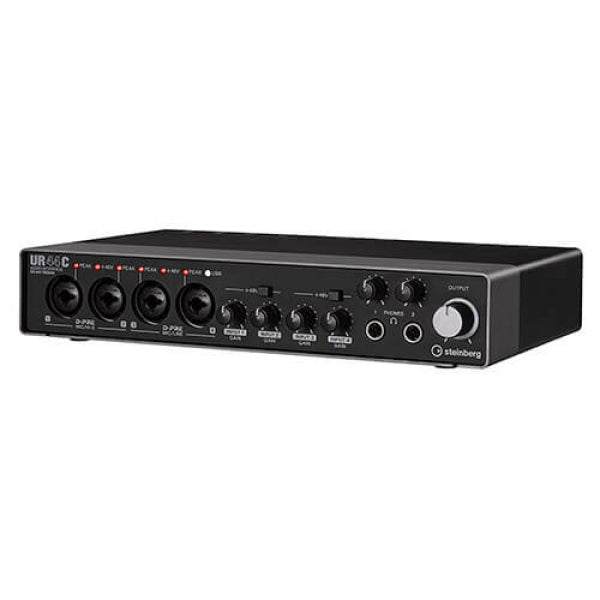

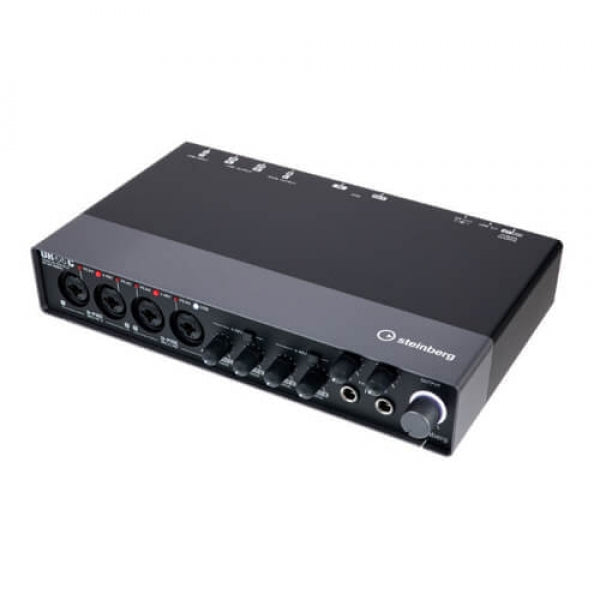

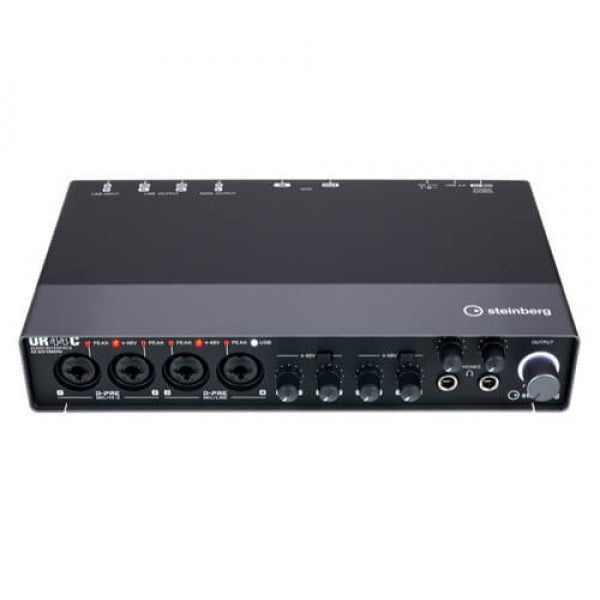

Steinberg UR44C 6x4 USB 3.0 Audio Interface With Cubase AI And Cubasis LE

Finding a location for making high quality band or ensemble recordings has got a whole lot easier with the UR44C. With multiple high-quality inputs/outputs, professional-grade components, DSP effects and flexible use with computer or iOS device, all wrapped up in a compact, roadworthy package, anywhere is now your recording studio.

• Capture the subtlest nuance of every sound.
• Fast, reliable connectivity for maximum peace of mind.
• Easily record a complete band.
• Latency-free DSP effects.

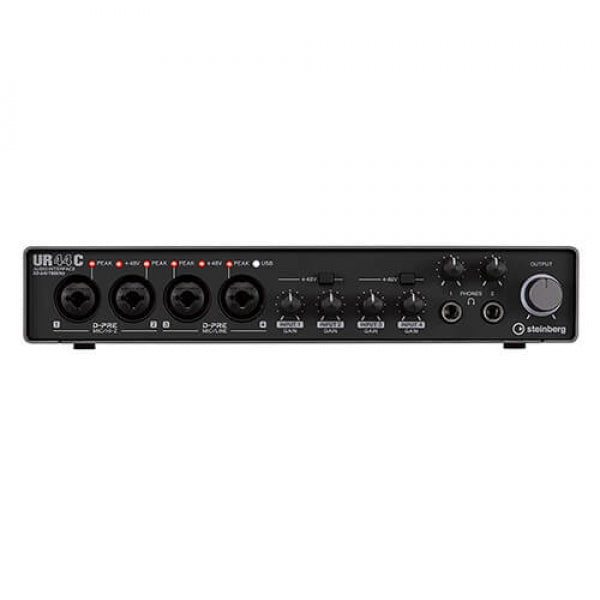

1. Combo Inputs 1/2 with Hi-Z and Peak indicator

Great sound quality begins here, with the UR44C’s combo inputs and high-quality D-PRE mic preamps. Connect microphones via XLR plugs and use the brilliant, transparent sound of the Class-A D-PRE mic preamps to capture your voice or acoustic instrument. Or directly plug in Hi-Z instruments like electric guitar or bass, using unbalanced 6.3mm plugs.

2. Combo Inputs 3/4 with Line and Peak indicator

You can connect two more microphones with XLR plugs to these inputs, which also transparent D-PRE preamps. Or you can use them to connect line level instruments like keyboards and electric guitars via effects units, using balanced or unbalanced 6.3mm plugs.

3. USB indicator

This indicator lights up when the power is turned on and the UR44C is communicating with your computer or iOS device. If your computer or iOS device does not recognize the UR44C, the indicator will flash continuously.

4. +48V phantom power switch and indicator for Inputs 1/2 and 3/4

The UR44C provides +48 V phantom power on inputs 1-4 for when you’re using large (studio) or small diaphragm condenser microphones. The indicator lights up when the +48 V switch on the back panel of the UR44C is turned on.

5. Gain control knob for Inputs 1–4

Each input has its own gain control, which you can use in combination with the Peak indicator above each input socket to easily dial in the perfect input level for your performance.

6. Phones jacks 1–2 with volume controls

You can connect two sets of stereo headphones to these 6.3mm jacks for monitoring. Each one has its own independent volume control for adjusting the output signal level. The mix settings for each headphone output can be made in the dspMixFx UR-C application.

7. OUTPUT knob and power indicator

This control adjusts the output signal level of the main outputs on the rear panel. The power indicator ring lights up when the UR44C is receiving power and it will flash continuously if the power supply is insufficient. If this happens, you can use the included power adapter to provide sufficient power to the UR44C.

32-bit/192 kHz audio resolution

The industry-leading converters used in the UR-C series deliver exceptional audio quality, thanks to a maximum sampling rate of 192 kHz with 32-bit resolution. High-quality conversion is a crucial first step to a great audio production and, with the UR-C interfaces, Steinberg’s designers invested a huge amount of time, effort and meticulous research in choosing the very best combination of components for outstanding analog to digital conversion. In addition to the great build quality of the UR series, the sound quality of the UR-C models has been refined by carefully adjusting components and incorporating 32-bit converters. These set a new standard for precisely and transparently capturing the subtlest nuances of every recorded signal, ensuring even the tiniest audio detail is maintained throughout the entire production process.

Class-A D-PRE mic preamps

The UR-C series features D-PRE preamps, offering stellar recording quality unmatched in this price class. Yamaha’s highly acclaimed D-PRE preamps deliver truly transparent and beautifully detailed sound. A sumptuously detailed high end, immaculate dynamic response and rich, rounded low frequencies are the hallmarks of D-PRE, a very special, class-leading preamp which has been praised by industry professionals and media alike ever since its introduction. And to faithfully capture and replay that warm, transparent sound, the UR-Cs feature AD and DA conversion stages with up to 32-bit/192 kHz resolution.

Compatible with all major audio software

Our UR-Cs are compatible with all major audio software supporting the ASIO, Core Audio or WDM standard, providing a fully integrated, DSP-based monitoring setup wherever you are and with whichever DAW you use. Integrating seamlessly with Cubase and almost any other DAW, UR-Cs deliver latency-free monitoring with DSP-powered FX, via the onboard SSP3 DSP chip and latest dspMixFx technology.

Latency-free monitoring with DSP effects

With built-in DSPs, UR-C interfaces provide zero-latency monitoring with effects for every DAW, with straightforward control of all routings and settings. Powered by Yamaha’s custom-designed SSP3 DSP chip, you can enjoy all the benefits of dspMixFx technology. This offers latency-free monitoring, together with the highly acclaimed REV-X reverb, the Sweet Spot Morphing Channel Strip and Guitar Amp Classics for users of any DAW software. When using Cubase, all of the advanced monitoring capabilities are fully integrated into the application’s GUI by True Integrated Monitoring technology and users can choose to control the monitoring capabilities either from Cubase or the dspMixFx application, while the dspMixFx UR-C mixing application allows control of all effects when the interface is used with any other audio software.

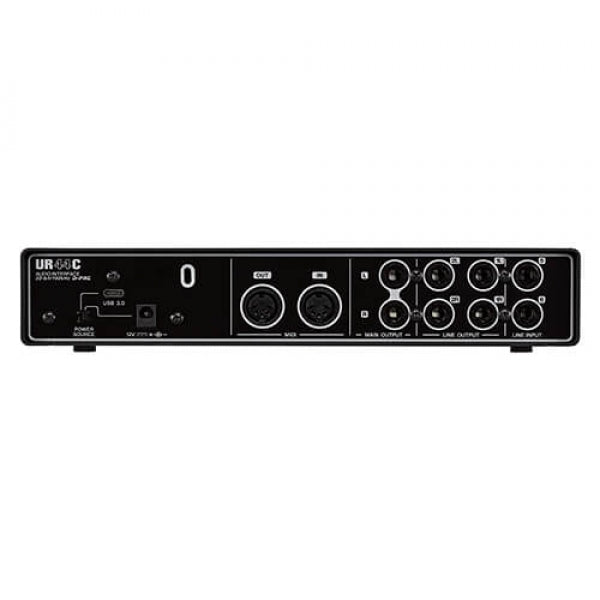

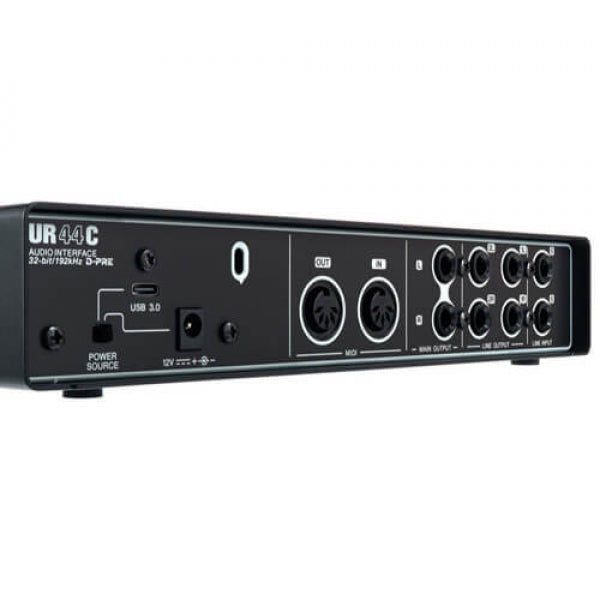

MIDI input and output

All UR-C audio interfaces are equipped with a MIDI I/O port to connect any MIDI device, making them extremely flexible for studio recording. Many studios and musicians still use MIDI input devices, classic sound modules, samplers and more as an integral part of their signature sound. The MIDI I/O on the UR-C series means that you can combine the latest audio interface technology with any MIDI device to ensure every aspect of your sound is just as you want it.

Superspeed USB 3.1 with USB-C

UR-C interfaces feature the USB 3.1 Gen 1 SuperSpeed standard, which provides fast, reliable and seamless connectivity to Mac and PC computers, as well as iOS devices. Together with the enhanced low latency delivered by our newly designed SSP3 chip and latest, most refined drivers, the UR-C series gives you peace of mind wherever you are recording. Also being compatible with USB 2.0 standard, you can enjoy the benefits of enhanced low latency with computers that do not provide a USB 3 connection.

Ultra-rugged build

Built to the most exacting standards, with a robust metal casing, the UR-Cs are rugged enough to withstand all the rigors of the road. Location recording, or just transporting your gear from one place to another, always comes with the risk of bumps, bangs, drops or scrapes. The exceptional build quality of these interfaces means you don’t need to worry about the journey — they are tough enough to ensure that, when you set up to record, the high-quality internal components will work perfectly every time.

dspMixFx Remote Bridge

dspMixFx Remote Bridge is a Windows/Macintosh computer application which allows you to control the DSP functions of a connected UR44C or UR816C wirelessly from an iOS device using dspMixFx iOS, when connected to the same wireless LAN. By using the Remote Bridge a singer or musician can easily adjust the DSP monitor settings from the recording booth.

iOS ready via CC Mode

Combining UR-C units with an iOS audio application such as Steinberg’s Cubasis for iPad, provides you with a fully mobile audio recording solution. All UR-C interfaces automatically switch to Class Compliant (CC) mode when connected to an iPad or iPhone and the UR22C, UR24C and UR44C can even be bus powered by the USB-C equipped iPad Pro models. With Steinberg’s Cubasis iPad app or other iOS audio apps, UR-Cs offer an effortlessly intuitive production experience on iPad or iPhone.

GENERAL

• Connection Type: USB Type-C
• Design: Desktop (2/3 19“, 1HU)
• Casing: Full-metal casing

SPECIFICATION

• AD/DA 32 bit
• Maximum sample rate 192 kHz
• Dynamic range input 102 [dB]

CONNECTIVITY

• Total number of inputs 6
• Total number of indiviudal outputs 4
• Total number of Outputs 6
• Microphone preamp D-PRE
• Microphone inputs 4
• Inputs with line level 4
• Inputs with HI-Z 2
• Analog inputs TRS 2
• Analog inputs Combo 4
• Analog outputs TRS 6
• Phantom power 4
• Headphone With dedicated volume control
• Headphones outputs 2

DSP FEATURES

• Monitoring Latency free monitoring with FX
• Onboard DSP SSP 3

DIMENSIONS

• Weight 1500 g
• Width 252 mm
• Height 47 mm
• Depth 159 mm

AVAILABLE WITH ONE YEAR WARRANTY

Origin of product : China
