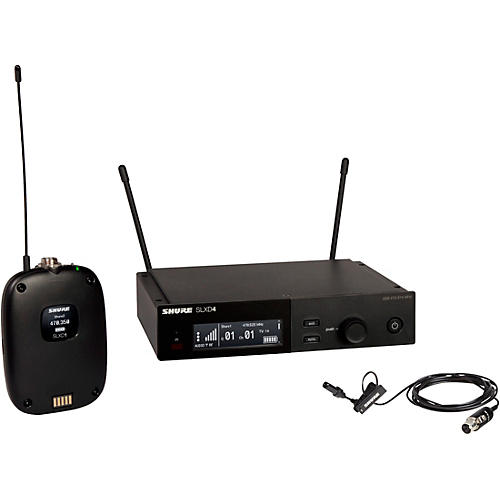

Shure Shure SLXD14/UL4B Wireless System with UniPlex Cardioid Lavalier Microphone Band G58

A premier wireless system delivering pristine voice reproduction for confident presentations.


The Shure SLXD14/UL4B wireless system lets you perform with confidence and clarity. This digital wireless system features the UniPlex UL4 cardioid lavalier microphone to deliver your voice with precision. Whether you're presenting at a conference, teaching a class or praising at a worship service, this system provides a stable signal and natural sound so your message comes through.

Crystal-Clear Digital Audio

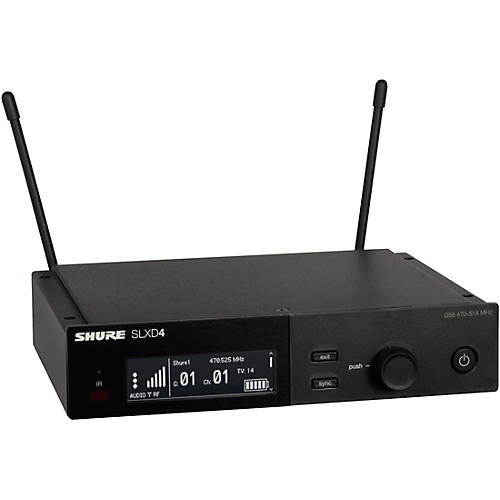

In front of an audience, audio quality is essential. The SLXD14 receiver provides crystal-clear digital audio with a wide dynamic range to accurately capture the nuances of your voice. Digital transmission means no interference or dropouts so you can focus on your performance instead of your equipment.

All-Day Power
With up to eight hours of use from two AA batteries (included), the SLXD14 receiver keeps the show going for the duration of long events and conferences. For even more convenience, optional Shure rechargeable batteries provide environmentally-friendly power that ensures you're always ready to present or perform.

Superior Speech Capture

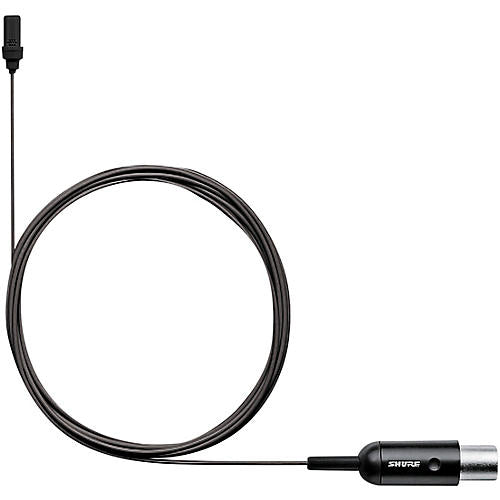

The included UniPlex UL4 lavalier microphone is tailored specifically for speech, providing exceptional sound quality for presentations, education and broadcast. Its cardioid polar pattern focuses on the sound in front of the mic while reducing noise from the sides and rear. The advanced Shure Plex cable ensures longevity and flexibility without kinks or memory effects. Four color options let you choose a mic that complements your style and environment.

Professional Components
From a leader in professional audio equipment, the Shure SLXD14/UL4B system provides high-quality components for your critical applications. The receiver features intuitive menus and professional I/O options. With a working range of up to 328', you have the freedom to move naturally in front of your audience. For wireless audio tailored to your speech and presentation needs, the Shure SLXD14/UL4B system delivers.

Features
Digital wireless system with crystal-clear audio and >120dB dynamic rangeUniPlex lavalier mic for superb directional capture and tailored speech soundAdvanced Shure Plex cable and dual redundant ground for maximum longevityCompatible with Shure LEMO bodypack transmitters and preamplifiers
Order the Shure SLXD14/UL4B wireless lavalier microphone system today for unmatched vocal clarity.
Shure SLXD14/UL4B Wireless System with UniPlex Cardioid Lavalier Microphone Specifications:
SLXD14
RF
RF Carrier Frequency Range: 470–937.5MHz
Working Range: 328’ Note: Actual range depends on RF signal absorption, reflection, and interference.
RF Tuning Step Size: JB Band: 125kHz, All Other Bands: 25kHz
Image Rejection: >70dB typical
RF Sensitivity: ?97dBm at 10-5 BER
Audio

Latency: 3.2 ms
Audio Frequency Response: 20Hz–20kHz (+1, ?2dB)
Audio Dynamic Range: 120dB @1% THD
Total Harmonic Distortion: <0.02%
System Audio Polarity: XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4”) with respect to the ring of the 6.35 mm output.
Mic Offset Range: 0 to 21dB (in 3dB steps)
Temperature Range
Operating Temperature Range: 0 °F to 122 °F (?18 °C to 50 °C)
Storage Temperature Range: ?20°F to 165°F (?29°C to 74°C)

UniPlex Cardioid Lavalier Microphone
Microphone Capsule
Polar Pattern: Cardioid
Frequency Response: 40Hz–20kHz
Sensitivity: -42.5dBV/Pa (Pa=94dB SPL)
Self-Noise: 32dB SPL-A (A-weighted, Equivalent Acoustical)
Signal-to-Noise Ratio: 62dB-A
Maximum SPL: 130.0dB SPL (1kHz @ 1% THD, typical)
Dynamic Range: 98dB
Microphone Current Draw: Typical 530 µA, maximum
Bias Voltage: 3.5-5 VDC (5.5VDC MAX)
Housing: Molded ABS
Polarity
MTQG: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
LEMO: Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
Cable
Diameter: 1.6 mm
Length: 66.0” (1.67 m)
Physical
Net Weight: 12.5 g (0.44 oz)
Capsule Dimensions: 17 mm × 5 mm
