Neumann TLM 103 Anniversary Stereo Microphone Pair Satin Nickel

Superlative matched-mic sound, plus shockmounts, and a rugged road case.

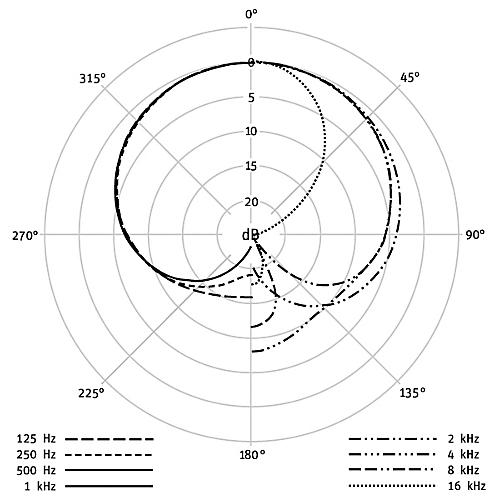

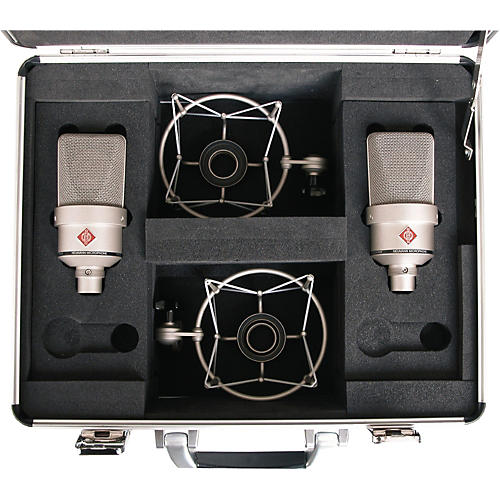

The Neumann TLM 103 Anniversary stereo microphone set includes two matched TLM 103 Microphones and two EA 1 elastic suspension shockmounts in a sturdy metal travel case.The Neumann TLM 103 large-diaphram microphone is a new standard for home recording and the music industry. By utilizing the tried-and-true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet-unattained low self-noise and the highest sound pressure level transmission. The capsule, derived from that used in the U 87, has a cardioid pattern, is acoustically well-balanced and provides extraordinary attenuation of signals from the rear. The TLM 103 is the ideal large-diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget.Polar patternThe TLM 103 is equipped with a large-diaphragm capsule with cardioid pattern. By focusing on this pattern—used in most recording situations—the attenuation of unwanted rear sound has been optimized. Off-axis sounds are rendered naturally while isolation is increased. This also leads to a high feedback suppression when the microphone is used in live situations or where loudspeaker playback is a factor.Acoustic featuresThe TLM 103 is addressed from the front, marked with the red Neumann logo on the microphone body. The K 103 large-diaphragm capsule is based on the K 87, well known from the U 67/U 87 microphones. The capsule has a flat frequency response up to about 5kHz, and above that, a wide, flat 4dB presence boost. The large wire mesh headgrille protects the capsule from plosive sounds and effectively prevents pop noises. These characteristics are achieved without resorting to corrective resonance effects. Therefore, the microphone maintains an excellent impulse response and reproduces the finest details of music and speech without coloration.Electrical features With just 7dB-A / 17.5dB CCIR the self-noise level of the TLM 103 is so reduced that even the smallest signals are reproduced basically noise-free. As it is capable of handling sound pressure levels up to 138dB without distortion, the TLM 103 provides a dynamic range of 131dB, according to DIN/IEC 651.The letters TLM stand for "transformerless microphone." With TLM technology, the usual output transformer is replaced by an electronic circuit. As with traditional transformers, it ensures good common mode rejection, and prevents RF interference that may influence the balanced audio signal.Operational safetyThe entire internal construction is elastically mounted to attenuate any structure borne noise that could interfere with the TLM 103's operation. The frequency range reaches below 20Hz and thus even very low bass signals are reproduced without coloration. The included elastic suspension EA 1 shockmounts will further reduce structural borne interference due to low frequency extension and wind noise.
Features
Matched pair of large-diaphragm cardioid microphonesPressure gradient transducer with with one-diaphragm capsuleTransformerless circuitryExtremely low noise: 7 dB-AStraightforward handling for home recording and professional studiosHigh-quality professional equipment for limited budgets
A very worthy addition to your mic complement that you'll go to time and again. Order today.
TLM 103 Anniversary Stereo Microphone Pair Specifications:
Acoustical operating principle: Pressure gradient transducer
Directional pattern: Cardioid

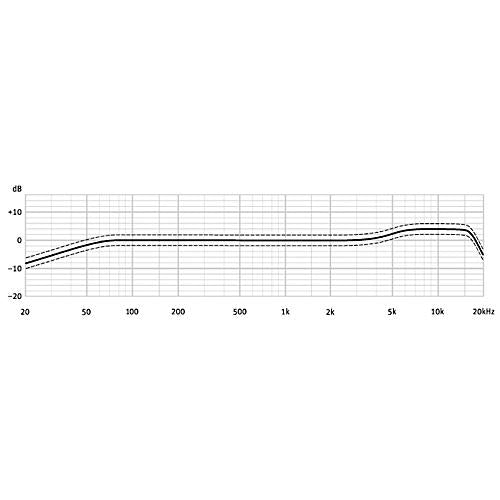

Frequency range: 20 Hz–20 kHz
Sensitivity at 1kHz into 1 kohm: 23 mV/Pa*
Rated impedance: 50 ohms
Rated load impedance: 1,000 ohms
Equivalent SPL CCIR 468-3: 17.5dB
Equivalent SPL DIN/IEC 651: 7dB-A
S/N ratio CCIR 468-3: 76.5dB
S/N ratio DIN/IEC 651: 87dB
Maximum SPL for THD 0.5%: 131dB
Maximum output voltage: 13dBu
Supply voltage: 48V ± 4V
Current consumption: 3 mA
Matching connectors: XLR 3F
Weight: approx. 500 g
Diameter: 2.36", 60 mm
Length: 5.19", 132 mm
