Neumann M 49 V Remote Switchable Studio Tube Microphone Set

The legendary tube microphone of the '50s and '60s—available again.

This Neumann M 49 remote switchable studio tube microphone set looks as impressive as it sounds. With its revolutionary technology, the M 49 has set new standards altogether. The M 49 is a true Neumann legend.
Everything and More
The objective itself was grand: in the early 1950s, a reference microphone was developed in cooperation with the Nordwestdeutscher Rundfunk (Northwest German Broadcasting) that was to replace all previous ones. Instead of having to replace the capsule in order to change the directional characteristic, the M 49 allowed remote controlling the polar pattern from the power supply—continuously. With its balanced frequency response in all directional patterns from omnidirectional to cardioid to figure-8, including intermediate settings, the M 49 is a truly universal microphone: be it orchestra, piano, trumpet or vocals, the M 49 is suitable for recordings of all kinds to the highest standard. As a result, the M 49 was, and still is, in great demand. No other Neumann microphone of the tube age was manufactured for a longer period: from 1951 to 1971. Countless legendary recordings from cool jazz to present day pop bear its elegant sound signature. The M 49 is an inseparable part of the Neumann DNA.
The Best of the Best
At last, the legend is available again. The M 49 V is a reissue of the last revision. Over the years, the M 49 was continuously improved: the originally installed Hiller tube MSC2 was replaced by the TELEFUNKEN tube AC701 and then the AC701k. This and other circuit changes improved the signal-to-noise ratio, dynamic range and immunity to interference. In parallel, a broadcast version, the M 249, was issued with an RF-proof connector. The M 49 V uses the same circuit as the M 49 c, but with an even lower noise subminiature tube. Since high-frequency interference has increased dramatically due to mobile phone networks and WiFi, the RF-proof connector has been adopted from the M 249.

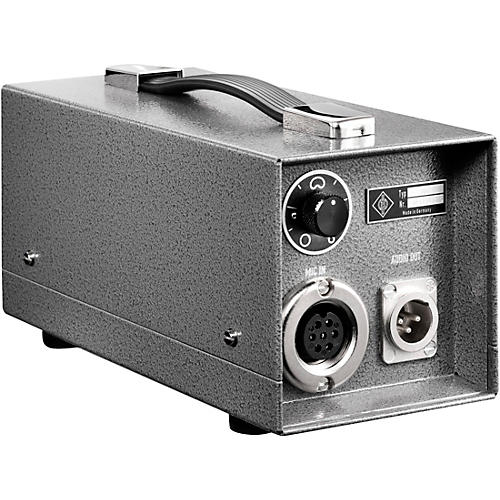

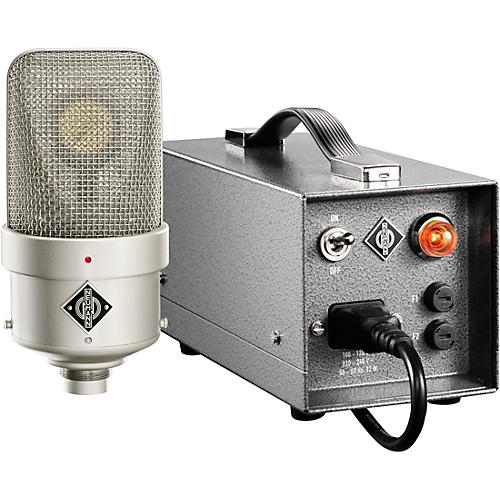

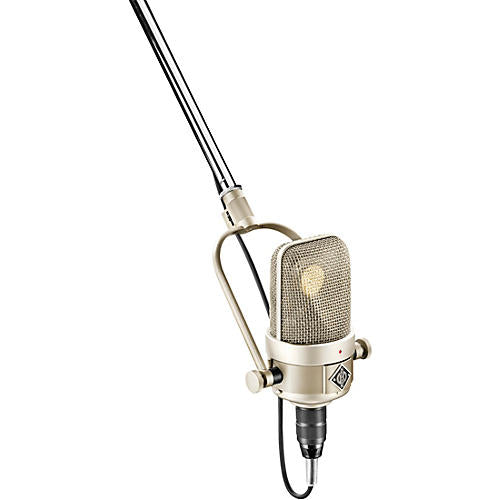

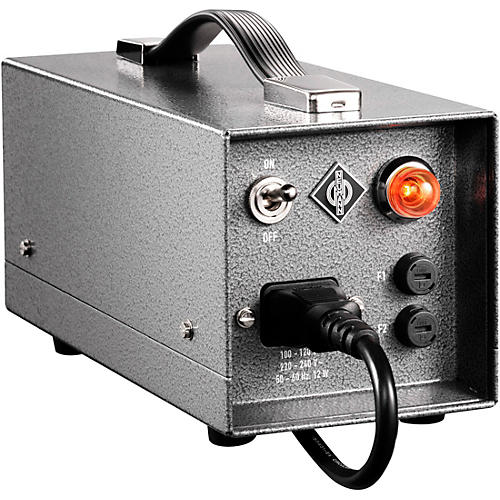

The included NM V pattern control unit is designed to automatically provide the optimal heater voltage for both the M 49 V and any historical M 49; it also automatically adapts to the local mains voltage. Additionally, the M 49 V set includes the iconic yoke mount, whose flexible positioning has contributed to the M 49's enormous popularity. The M 49 V set is delivered in a high-quality case, which, like the entire microphone, is handmade in Germany.
Features
Reissue of the legendary M 49 with detail improvementsSuperb vocal microphone for male and female voicesVersatile microphone for all types of instrumentsClassic tube circuit with output transformerContinuously variable polar pattern, remote controlledMade to original specifications using archived documentationNew pattern control unit automatically adapts to mains voltageHandmade and hand soldered in GermanyHandmade vintage case manufactured in Germany
Order the M 49 V remote switchable studio tube microphone set now.
M 49 V Remote Switchable Studio Tube Microphone Set Specifications:
Acoustical operating principle: Pressure gradient transducer
Polar pattern: Variable (omnidirectional, cardioid, figure-8)
Frequency response: 40Hz–16kHz
Rated impedance: 200 ohms
Rated load impedance: 1,000 ohms
Sensitivity: 6.5/8/10mV/Pa ± 1dB–43.5/–42/–40dBV
Signal-to-noise ratio, CCIR: 62/64/64dB
Signal-to-noise ratio, A-weighted: 73/74/75dB
Equivalent noise level, CCIR: 32/30/30dB
Equivalent noise level, A-weighted: 21/20/19dB-A
Maximum SPL for THD: < 0.5%, 125dB (cardioid)
Maximum output voltage: 300mV ~ –8dBu
Power supply: NM V
Required connectors/Microphone: KC 5 cable (7-pin)
Required connectors/power supply unit output: XLR 3 F
Weight: 1.76 lb.
Diameter: 3.15"
Length: 6.42"
