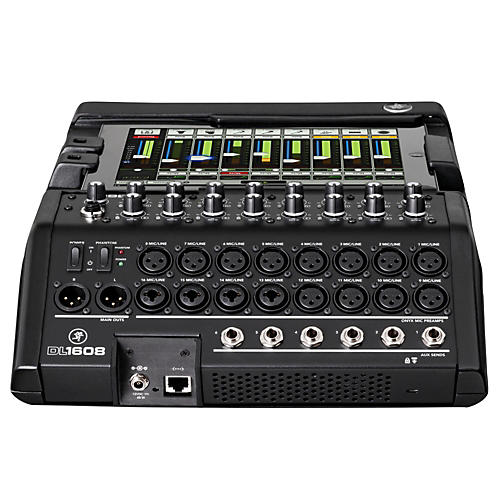

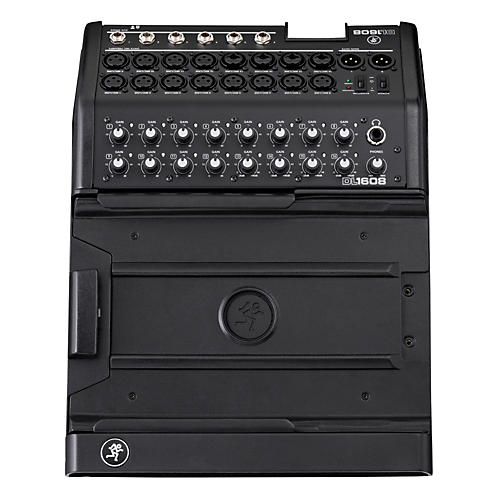

Mackie DL1608L Lightning 16-channel Digital Live Sound Mixer w/ iPad Control

Digital mixing from your iPad through the Lightning connector.

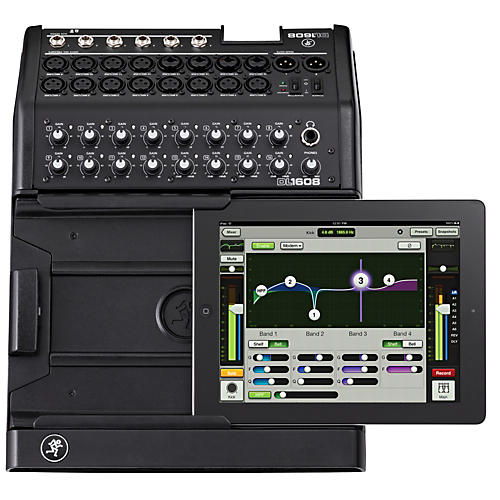

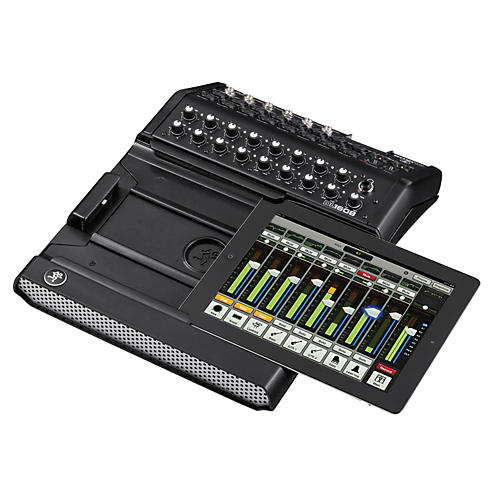

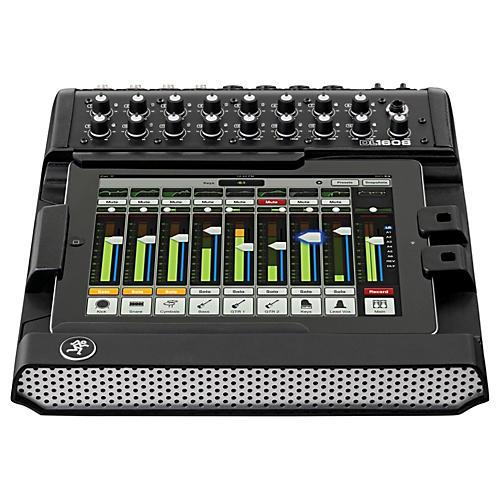

The DL1608L is a 16-channel mixer with revolutionary wireless iPad control that makes any live sound engineer's job and workflow much more enjoyable and exciting. This latest version of the series features a Lightning connector, replacing the 30-pin version. The Lightning connection is smaller and faster than 30-pin. The "L" delineation in the model name indicates the Lightning connector.With 16 high-quality Onyx microphone preamps, 24-bit Cirrus Logic AD/DA converters, and powerful internal DSP processing, the DL1608L has plenty of unmatched hardware power to support the extremely intuitive user interface of the iPad. There is an iPad dock built-into the unit should you choose to use it in it's standard mixing form, or you can simply pop the iPad out of the dock to freely move about the venue to adjust your mix at will with the use of an additional Wi-Fi router. You'll have Full hands-on control of audio level, 4-band EQ, compression, gate, delay, reverb, and more for each of the DL1608's 16 channels and master fader. Perfect for a wide variety of smaller applications and venues, the DL806 is the most modern, powerful utility mixer available. Forget bulky consoles and racks of gear. The power is at your fingertips.*Wi-Fi router required for wireless operation. Wi-Fi router and iPad, iPod touch or iPhone not included.*Wireless control supported from all iPad models. Docked control supported from iPad, iPad 2 and iPad (3rd generation)*Wireless control supported from iPod touch (4th and 5th generation), iPhone 4, iPhone 4S and iPhone 5*iPad must be docked and the app must support background audio playback to integrate music
Features
Lightning connection16 Onyx mic preampsHigh-end Cirrus Logic convertersUltra low-noise, high-headroom design4 aux sends for monitor mixesMaster L/R output for mainsChoice of powerful, touch-sensitive plug-ins4-band EQ, gate and compression on inputs31-band GEQ and comp/limiter on outputsGlobal reverb and delaySeamless wired to wireless mixingTune the room from anywhereGet on stage to ring out monitorsPersonal monitor mixing with access control abilityUse up to 10 wireless devices simultaneouslyIntuitive Master Fader app for all iPad modelsMy Fader app for quick control from iPhone or iPod touch"Grow and Glow" visual feedbackPreset and snapshot recallRecord the mix to the iPad for instant sharing
Order today and your mixing concept will change forever.
DL1608L Lightning 16-channel Digital Live Sound Mixer w/ iPad Control Specifications:
Analog Audio
Input Connections: 12 x XLR balanced
4 x XLR & 1/4" TRS combo jack
Mic Preamps: Onyx
Input Impedances: Channels 1 - 12: 3k?
Channels 13 - 16: 3k? XLR, 30k? 1/4" TRS
Maximum Input Level: XLR: +21 dBu, 1/4" TRS: +30 dBu
Gain: XLR: 0 to 60 dB, 1/4" TRS: -20 to 40 dB
Phantom Power: +48V
10 mA max per mic, with up to 8 mics
5 mA max per mic, with up to 16 mics
Output Connections: 2 x XLR balanced (L/R)
Output Impedance: 600?
Maximum Output Level: +21 dBu
AUX Sends: 1/4" TRS - supports balanced/unbalanced
240? balanced, 120? unbalanced
+21 dBu max output level
Digital Audio
Sample Rate: 48 kHz
Bit Depth: 24-bit
Latency: 1.5 mS
Performance
Frequency Response: 20 Hz to 20 kHz, +0 /-1 dB
all inputs to all outputs
THD: < 0.005%
mic input to main output, 1 kHz @ -1 dBFS
EIN: -128 dBu @ 150? termination
Noise: Mic input to main output, A-weighted:
-79 dBu, with channel and main faders @ 0 dB
-90 dBu, with channel and main faders @ -? dB
Crosstalk: Adjacent inputs: < -120 dB @ 1 kHz
Outputs: < - 105 dB @ 1 kHz
Signal-to-Noise Ratio: 92 dB
ref +4 dBu, one channel and main fader @ 0 dB, A-weighted
Dynamic Range: 109 dB
one channel and main fader @ 0 dB, A-weighted
CMRR: > 70 dB @ 1 kHz (60 dB gain)
Networking
Connector: 100 MB Ethernet
Control: Complete
Simultaneously Connected Remote Stations: Up to 10 iPads
iPad System Requirements: Original iPad, iPad 2, or iPad 3rd generation
iOS v5.0 or higher
Power
External Power Supply: Yes
100-240VAC, 50-60 Hz, Universal
User-replaceable IEC
Output Voltage: 12VDC
Current: 4A
DC Plug: 5.5 mm x 2.5 mm barrel with locking ring
Power Consumption: 48W max
General
Operating Temperature: 32 to 104 F (0 to 40 C)
Dimensions (W x H x D): 11.5 x 3.7 x 15.4" (291 x 95 x 391 mm)
9U rackmount plus space for connections
Weight 6.9 lb.
