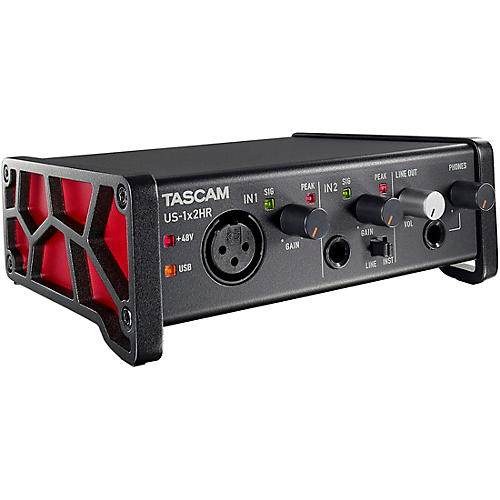

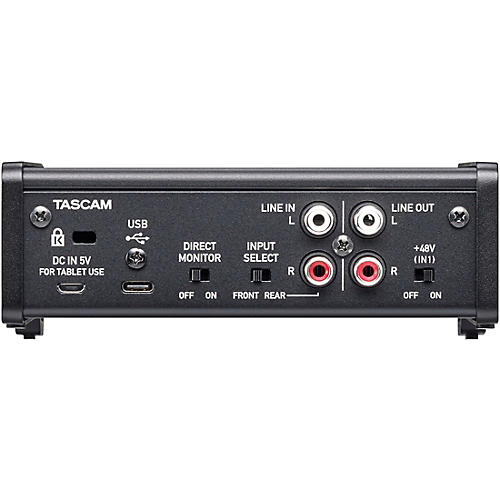

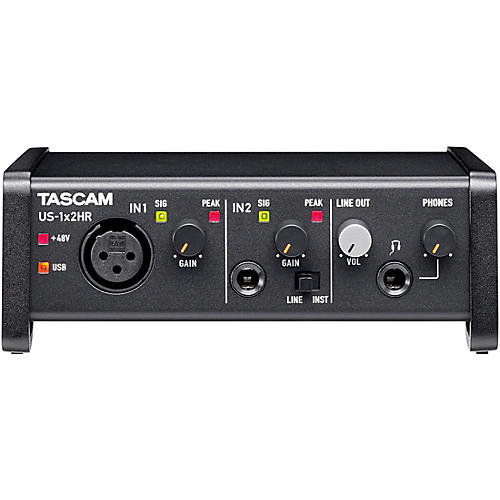

TASCAM US-1X2HR 2-Channel USB Audio Interface

1 mic, 2-in/2-out high-resolution versatile USB audio interface.

1 XLR mic input and 1 TRS line/guitar input audio interface with 192kHz support and USB-C bus power connection. The included loopback function and OBS support makes this interface an excellent choice for podcasts and livestreaming. The US-1x2HR offers simple and intuitive operation, sophisticated looks, a rich assortment of software bundles and improved audio performance, thanks to the newly enhanced audio circuit.
Features
2-in/2-out USB audio interfaceSupports up to 24-bit/192 kHz audio formatsImproved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)1 XLR input equipped with Ultra-HDDA mic preamp and +48V phantom power1 TRS line/inst. inputRCA line L/R inputsRCA line L/R outputs1 headphone outputUSB Type-C connection (USB Type-A to Type-C cable included)Powered by USB bus powerZero-latency direct monitoringCompatible with iPad and other iOS devicesExtensive line-up of bundled softwareSteinberg Cubase LE, Cubasis LE 3IK Multimedia Sample Tank 4 SEAntares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)OBS support
For guitar and vocal recording musicians. Order today.

US-1X2HR 2-Channel USB Audio Interface Specifications:
Sampling frequency
44.1k/48k/88.2k/96k/176.4k/192kHz
Quantization bit rate
24-bit
MIC IN (IN 1) Connector
XLR-3-31 (1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance
2.4k ohms
Maximum input level
(GAIN:MIN) +9dBu (2.183Vrms)
Gain
58dB
LINE/INST IN(IN 2)
LINE IN
Connector
6.3 mm (1/4") TRS-jack (T:HOT, R:COLD, S:GND), BALANCED
* When set to "LINE" at LINE/INST switch
Input impedance
0k ohms
Maximum input level
(GAIN:MIN) +20dBu (7.75Vrms)
45dB
INST IN
Connector 6.3 mm(1/4") TS-jack (T:HOT, S:GND), UNBALANCED
* When set to "INST" at LINE/INST switch
Input impedance
1M ohms or more
Maximum input level
(GAIN:MIN) +3dBV (1.1425Vrms)
45dB
LINE L/R IN Connector
RCA pin-jack, UNBALANCED
Input impedance
10k ohms
Maximum input level
+6dBV(1.9953Vrms)
Analog audio outputs LINE OUT
Connector
RCA pin-jack, UNBALANCED
Output impedance
100 ohms
Maximum output level
+6dBV (1.995Vrms)
PHONES
Connector
6.3 mm (1/4") stereo phone jack
Maximum output level
18mW+18mW or more
(THD+N 0.1% or less, 32 ohms loaded)
Control IN/OUT
USB
Connector
USB Type-C
Format
USB 2.0 HIGH SPEED (480Mbps)
DC IN 5V
Connector
USB Micro B type
Power
When connected PC USB bus powered
When connected iOS USB power adapter (that can supply 5V and a current of at least 700mA)*1
External battery pack (that can supply 5V and a current of at least 700 mA)*2
Power consumption
1.8W
Dimensions (WxHxD)
146 × 55 × 120 mm (including protrusions)
Weight
623g
Operating temperature
5 to 35°C
*Strongly recommend using TASCAM PS-P520E AC adapter or the USB power adapter included with the iPad/iPhone. No USB power adapter is included with an iPod touch. To use it with an iPod touch, purchase a genuine Apple USB power adapter (that can supply 5V and a current of at least 700mA) separately.
*2 We strongly recommend using a TASCAM BP-6AA external battery pack. If using another external battery pack or mobile battery, purchase one that can supply 5V and a current of at least 700mA.
Computer system requirements

Windows
Compatible computers Windows computer with a USB 2.0 (or higher) port
CPU type/speed 2GHz or faster dual core processor (x86)
Memory 2GB or more
Driver ASIO ASIO2.0, WDM
Mac
Compatible computers Mac with a USB 2.0 (or higher) port
CPU type/speed 2GHz or faster dual core processor
Memory 2GB or more
Driver Core Audio
iOS/iPadOS divice
Driver
Core Audio
Supported OS'
Windows
Windows 10 (October 2020 Update) New , Windows 8.1 , Windows 7
Mac
macOS Big Sur New , macOS Catalina , macOS Mojave , macOS High Sierra (10.13) iOS
iPadOS 14 New , iOS 14 New , iPadOS , iOS 13 , iOS 12
Accessories
USB cables (Type-A to Type-C)
Set of DAW software installation guides
Set of DAW plug-in software installation guides
Owner's Manual (including warranty)
