Neumann KH 750 DSP 10" Powered Studio Subwoofer (Each)

Compact DSP-controlled closed cabinet subwoofer.

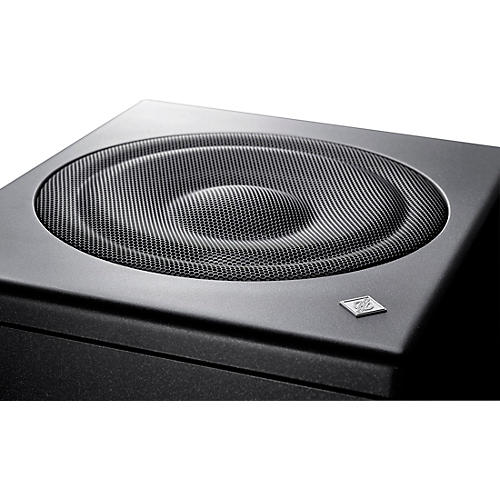

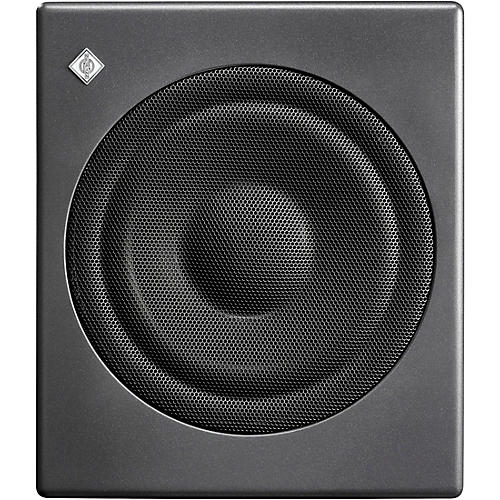

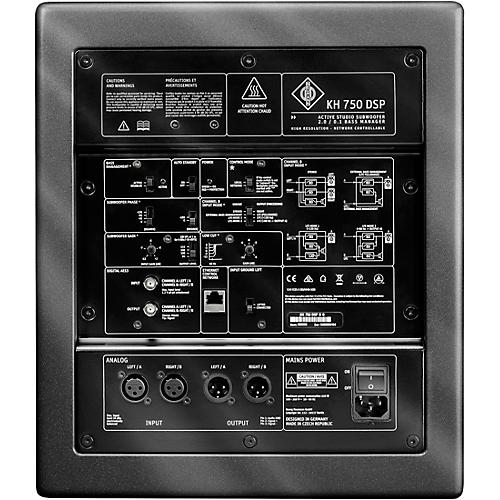

The compact KH 750 DSP 10" is the ideal choice for smaller rooms and smaller studio monitors, such as the KH 80 DSP. It has a unique and flexible 2.0/0.1 Bass Manager allowing the subwoofer to be used in many different system configurations. On the back panel there are analog and digital inputs and outputs, four routing modes and adaptable acoustical controls to allow for seamless system integration. The Neumann.Control software gives access to many additional functions inside the subwoofer. The KH 750 DSP can be used in music, broadcast, and post production studios for tracking, mixing, and mastering.The newly designed 10” long-throw driver has a large magnet, linear motor design and a very stiff pressed steel basket. As subwoofers are usually placed on the floor, a robust grille protects the driver from accidental damage. The well-braced cabinet is a sealed designed which brings the fastest possible transient response. The two analog XLR inputs are balanced as are the two analog XLR outputs. The 192 kHz/24-bit digital input can accept AES3 and S/P-DIF signals. There is a bypassable standby function and the switch-off time can be adjusted in Neumann.Control.Control and align your monitor setup with your iPadVia standard IP networking, Neumann.Control gives access to many additional the functions of the KH 750 DSP Subwoofer. Systems of loudspeakers can be defined, from mono to 3D, aligned for a good in-room sound, and then operated centrally: Setup, Align, Operate. At last, you do not have to be an expert to optimally integrate this subwoofer into your system, even in a small room.The Neumann.Control app for iPad offers several features allowing you to setup, align and operate the KH 750 DSP and KH 80 DSP even in large setups up to 9 loudspeakers.The key features are:Setup:• 1, 2, 4, 5, 7 and 9 loudspeakers and subwoofers• Identify loudspeakers and subwoofers on the network that are in the room• Assign the identified loudspeakers and subwoofers to positions in the roomAlign:• Guided Alignment – a set of simple questions resulting a well-balanced sound. The Guided Alignment is a process where you are asked very simple questions about the room and the loudspeaker/subwoofer position, and then the app adjusts the response of each loudspeaker/subwoofer accordingly.• Manual Alignment – an 8-band fully parametric equaliser for expert users. In Manual Alignment expert users have complete freedom to adjust an 8-band parametric equalizer, levels and delays in each loudspeaker/subwoofer as they wish. Manual Alignment can also be used to edit Guided Alignments in a more detailed way.Operate:• System and alignment selection• Volume control, preset levels, dim, mute all• Groups, solos, mutes• Other system settings such as delay, standby level and logo brightnessSystem Requirements: iPad with iOS 10 or higherApplications:Decreased the bass extension of the monitoring systemIncreasing the maximum SPL of loudspeakersDecreasing harmonic and intermodulation distortion of loudspeakersReproducing the LFE channelReproducing the “Sub” signal of a bass managed multichannel sourceWorking as an extension for KH 810, KH 870 and KH 805 subwoofer systems
Features
Easily installed compact cabinet with a very deep bass responseDSP engine optimizes output to achieve reference class soundNeumann.Control App for iPad to setup, align and operate in a system8 x full parametric equalizer incl. Lo-/Hi-Shelf and Low-/High-Pass, controllable via Neumann.Control -> Accurate and flexible alignment of the subwoofer in the room and within systemsDelay -> Lip-sync (100 ms): To align audio and video signals up to 2.5 frames at 50 Hz or 3 frames at 60 Hz -> Time-of-flight (2 x 20.8 ms): To compensate for listening distance differences up to 7.2 m (12 ft 5in)
Take control of your studio sound. Order today.
KH 750 DSP 10" Powered Studio Subwoofer (Each) Specifications:
THD+N: analog, digital: < -100dB; < -90dB
Free field frequency response ±6 dB: 16Hz– 800Hz
Free field frequency response ±3 dB: 18Hz–750Hz
Reproduction accuracy between 50Hz and 100Hz: 100%, 80%, 50% of subwoofers produced: n/a
Self-generated noise at 10 cm (with input gain set to 100dB SPL for 0dBu): <20dB(A) SPL
Sine wave output with a THD < 0.5 % at 1 m in half space: 95dB SPL (>70 Hz)
Bass capability: Max. SPL in half space at 3% THD at 1 m (averaged between 50Hz and 100Hz): 105dB SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair full range): n/a
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair with subwoofer): n/a
Analog input(s): 2 x XLR: analog electronically balanced
Analog input impedance: >13k ohms
Max. input level: < +24dBu
Common mode rejection ratio (CMRR): > 56dB @ 15kHz
Crosstalk (1 kHz), level matching: < -90dB; ±0.1dB
Volume control: via Neumann.Control software
Volume control range; resolution: 0 … -?dB; 0.1dB
Analog dynamic range; THD+N: 119 dB(A); <0.003% (-90dB)
Signal routing modes: Right; External Bass Management; 2 x LFE
Analog output(s): 2 x XLR; analog electronically balanced
Input gain control (sensitivity): +2 ... -12dB
Output level control (output level in 1 m based on 0 dBu input level): 94; 100; 108; 114 dB SPL
Digital input(s): BNC (75 ohm): AES3; S/P-DIF
Digital output(s): BNC (75 ohm): AES3
Digital converter: resolution; design: 16 … 24-bit DAC; ??
Digital converter: sampling rate: 48kHz
Dynamic range A-D-A: >120dB(A)
Dynamic range D-A: >123dB(A)
Digital sensitivity: -18dBFS = 100dB SPL at 1 m
Latency: 1.5 ms (A-D-A linear phase); 1.2 ms (D-A linear phase)
Delay: User adjustable delay range: 0–100 ms and 2 x 0–20.8 ms
Delay: Resolution: time; distance: .1 ms; 3.44 cm (1 3/8”)
Delay: Max. frames Audio-video synchronisation (lip sync): 2.5 (40 ms) frames; 3 (33 ms) frames
Delay: Time-of-flight maximum distance: 2 x 7.16 m (23' 5")
Controller design: Digital; active
Crossover frequency: 80Hz fixed or 60–100Hz via Neumann.Control
Crossover slope: 24 dB/oct; 4th order
Phase: 0; 45; 90; 135 under 0/180 deg
Equalization: via Neumann.Control software: 8 x full parametric IIR + low / high shelf global balance
FIR phase correction: For connected analog loudspeakers: Linear phase (170Hz–16kHz; +/- 45°)
Protection circuitry: Driver (thermo limiter); Electronics (temperature limiter); Amplifier (peak limiter, temperature limiter, temperature protection and overcurrent protection); Power supply (temperature limiter and overcurrent protection)
Infrasonic filter: frequency; slope: 6.5Hz; 12dB/oct.
Remote control: Neumann.Control software via an RJ45 connector carrying standard IP data
Display: On; Normal Operation: Green LED
Display: Identification: Amber LED
Display: Limit/Clip/Errors/Protection/Boot Mute/Shut Down Mute: Red LED
Display: Bass Management on: Green LED
Output power woofer amplifier (THD+N with limiter deactivated: 10%): 256W
Mains Power Supply: input voltage; frequency: 100-240V; 50/60Hz
Power consumption (230 V / 100 V): Standby: <300 mW
Power consumption (230 V / 100 V): Idle: 18W
Power consumption (230 V / 100 V): Full output: 410W
In-rush current (Peak): 30 A @230 VAC
Standby: Disabled; 90 mins (default); user defined in software
Cabinet material: Wood cabinet, aluminum electronics panel
Cabinet surface finish; color (front/back): Painted; metallic anthracite (RAL 7021) / black (RAL 9005)
Operating conditions: +10°C to +40°C (+50°F to +104°F); <90% RH, non-condensing
Transport/storage conditions: -25°C to +70°C (-13°F to 158°F); <90% RH; non-condensing
Woofer: 265 mm (10") with protecting black metal grille
Product dimensions (height x width x depth): 383 x 330 x 383 mm (15-1/8" x 13" x 15-1/8")
External net volume: 48.4 liters
Product weight: 19.5 kg (43 lb.)
