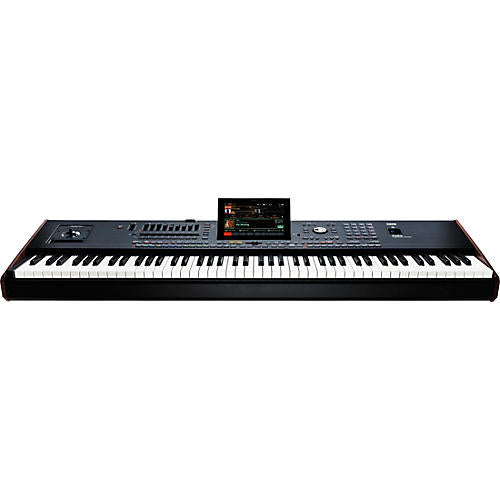

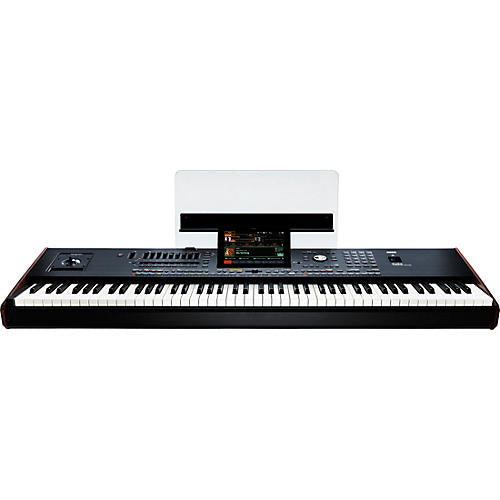

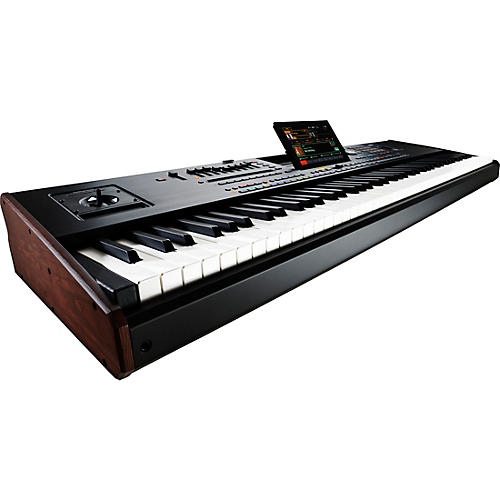

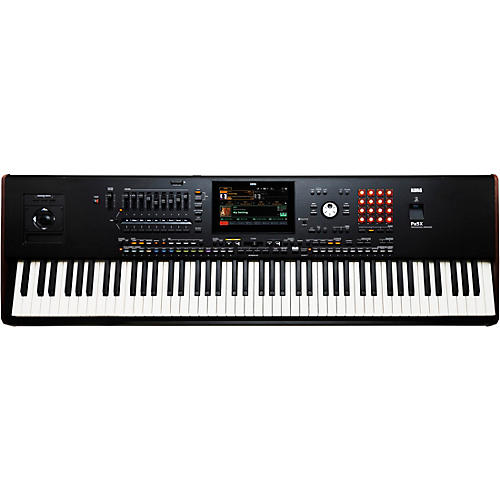

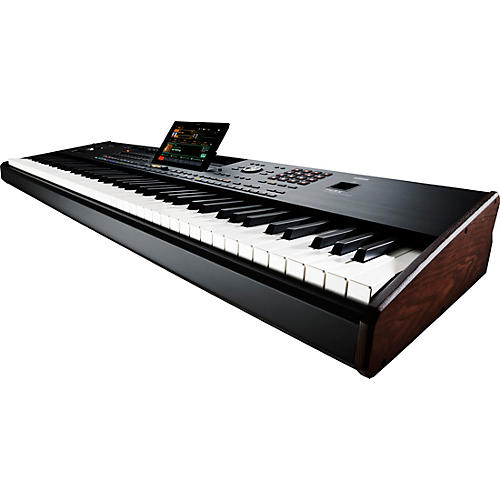

KORG Pa5X Professional Arranger 88 Key

A powerful sound engine and a streamlined user interface packed into an elegant design.
Pa5X is a flagship in the KORG Professional Arranger lineup, redefining an arranger keyboard. Completely redesigned with a state-of-the-art sound engine and a streamlined color-driven user interface, Pa5X produces a stunningly rich and unique sonic experience that inspires you to create and perform. Pa5X comes packed with thousands of inspiring sounds and hundreds of fresh styles, all instantly accessible through an inviting workflow. A completely new front panel featuring an assignable Pad Matrix and Mixer section, multicolored LED buttons and a huge tilt-able touchscreen put you in control of your music making experience at all times. Pa5X excels both as a live performance instrument and as a powerful creative tool in the studio, allowing you to find your ideal sound no matter where your music takes you.
Features
Premium quality and elegant design
Modern and streamlined user interface
Stunningly rich sound-engine EDS-XP
Real-time controllers
Advanced chord recognition and a library full of chord sequences
Smooth transition between sounds, styles and songs
Two cross-fading Players able to mix everything: Styles to MIDI-files, or MIDI-files to MP3-files, or Styles to Styles (unique to the Pa5X)
Each player displays lyrics and score
Create your own styles and songs
SongBook, a music library always with you
A complete sound library
Onboard mixer with insert, master, final and mastering effects
Dedicated Microphone and Guitar inputs with dedicated effects for each
MIDI, USB, HDMI, Audio In and Out, Pedal connectors
Standard file formats
Optional high-quality accessories

Order the KORG Pa5X Professional Arranger now.

Pa5X Professional Arranger Specifications:
Pa5X 61 keyboard: 61 keys (C2–C7) semi–weighted keys with Aftertouch
Case: Aluminum case with wooden side panels
Operating system: Upgradable
Sound generator: EDS-XP (Enhanced Definition Synthesis-Expanded), multimode filters with resonance, 3-band EQ for each track
Polyphony: 160 Voices, 160 Oscillators
Keyboard tracks: 3 Insert Effect, 3 Master Effects
Style/Song: 10 Insert Effects; 3 Master Effects
Final mastering effects: Waves/MaxxAudio Suite
Mic Setup: Compressor, EQ, Gate
Shift Audio mic processor technology: Four-part Harmonizer, Doubler, Filter, Modulation, Delay, Reverb, AutoPitch
Guitar processor: Guitar rack (4 effect-slots) with stompbox and amp simulation
Sounds/drum kits: Five multilayer stereo acoustic pianos with damper/body resonance, GM/XG sound sets, more than 130 drum kits including ambient drums and round robin-based drum kits
Drum factory: More than 2,200 factory sounds
User area: 768 Sounds, 384 drum kits
Digital drawbars: 9 Footages, Percussion, Key On/Off, Leakage, Vibrato/Chorus, Rotary Speaker with Amp Simulator
Features: Defined Nuance Control (DNC) technology
Editing: Quick and full sound editing, drum family and full drum kit editing
User PCM Sample memory: 4GB of data, equivalent to 8GB linear when compressed
Formats: Loads KORG, WAV, AIFF and SoundFont formats, saves KORG, WAV and AIFF formats
Sampling: Full edit, time slice and sampling features
Keyboard sets: More than 500 Factory Keyboard Sets, freely programmable, combines four Keyboard Sounds, plus Effects and settings
Accessibility: Library accessible from front-panel buttons
Special keyboard set: My Setting
Players: Patented XDS Crossfade Dual Player with X-Fader Balance control, crossfading between Songs and/or Styles
Factory styles: More than 600 Factory Styles, freely programmable, 8 Style Tracks, 4 Keyboard Sets and 4 Pads per Style
Features: Programmable Sounds, Effects and Style parameters
Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
Style Record and Event Edit
Style Elements: 3 Intros, 4 Variations, 4 Fills, 1 Break, 3 Endings
Style Controls: Play/Stop, Synchro Start, Synchro Stop, Tap Tempo/Reset, Auto Fill, Memory, Bass Inversion, Manual Bass, Bass & Lower Backing, Drum & Bass, Individual Style Tracks Mute, Style to Keyboard Set Set
Chord Sequencer
Factory: More than 200 Chord Sequences
Chord Sequence Recorder/Player
Chord Sequences can be saved to Style and SongBook Entries
Songs
Patented XDS Crossfade Dual Player with X-Fader Balance control
Supported formats: MID, KAR, MP3 + Lyrics, MP3+G
Lyrics, Score, and Chord data can be displayed on screen, or on external video monitor
Markers with Add, Delete, Edit, Loop and AutoScroll functions
Jukebox function
Full-featured, 16-track Sequencer, Song Edit
MP3 Player/Recorder
Double MP3 Player and MP3 Recorder
Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Matrix, Microphone, Guitar, Effects
Transpose (+6/-5 semitones), Tempo Change (±30%)
Vocal Remover
SongBook
Fully programmable music database based on Styles, MIDI Songs (MID and KAR files), MP3 Songs with Artist and Genre tags
Filtering and sorting options
User definable Set Lists
Compatibility
Legacy Pa-Series models: Styles, Keyboard Sets (Performances), Sounds (Programs), Songs, Pads
Pads
Factory: More than 400 Pads
Four Assignable Pads + Stop Buttons
Pad Record function
Control Section
9 Assignable Sliders, 9 Assignable Buttons, Strip Display; 4 Preset + 1 User settings
Matrix Section
16 Matrix Pads, 4 Preset buttons
Style/Song Controls
Play/Stop, Go To Start, Style Select, Song Select, Xfader, Tempo +/-, Tempo Lock, Tap Tempo/Reset, Synchro Start, Synchro Stop, Fade In/Out, Chord Scan (Lower, Upper), Chord Sequence, Memory, AutoFill
General Controls
Master Volume, Octave Transpose, Master Transpose, Dial, Up/+, Down/-, Joystick (Pitch + Modulation), Ribbon, 3 Assignable Switches, Search, Shift, Keyboard Sounds On/Off, Split, Ensemble, Rec/Edit, Menu, Exit
Scale Controls
On-screen Quarter Tone and Arabic Scale, memorized in the Keyboard Sets; Presets assignable to any button or footswitch
Control Inputs
Damper Pedal; supports half-pedaling with the optional KORG DS-1H pedal
2 Assignable Pedal/Footswitch
Audio Inputs
Mic: Mono with Gain control and Phantom Power (Combo XLR, balanced)
Guitar: Mono with Gain control (1/4" jack, unbalanced)
Line 1: Left/Right (1/4" jacks, balanced)
Line 2: Stereo (1/8" mini-jack, unbalanced)
Audio Outputs
Line: Main Left/Right, Separate Outs 1/2/3/4 (1/4" jacks, balanced)
Headphones (1/4" jack)
Video Output
HDMI connector
MIDI: IN, OUT, THRU standard MIDI connectors
USB to MIDI, through the USB Device port
16 User-definable MIDI Presets
USB Type A (Host 3.0, for storage devices and controllers): 1 front, 2 rear
USB Type B (Device 2.0, for personal computers and tablets): 1 rear
Internal drive: 1GB
Micro SD Card (not included): Rear-panel slot with plastic cover
USB Flash drive (not included): Can be connected to the USB Host ports
Display: 8" Wide capacitive color TouchView TFT display, 800 x 600 resolution
Clock: Internal system clock
Power consumption: 100-240 Volts, 50/60Hz, < 0.2W in standby/20W normal/45W with PaAS installed
Pa5X-88 dimensions (WxDxH): 54.65" x 20.43" x 13.07"
PaAS (optional) dimensions (WxDxH): 38.58" x 7.08" x 5.51"
Pa5X-88 weight: 57.650 lb.
PaAS (optional) weight: 12.56 lb.
Accessories: AC Power Cable, Music Stand, Quick Guide manual
