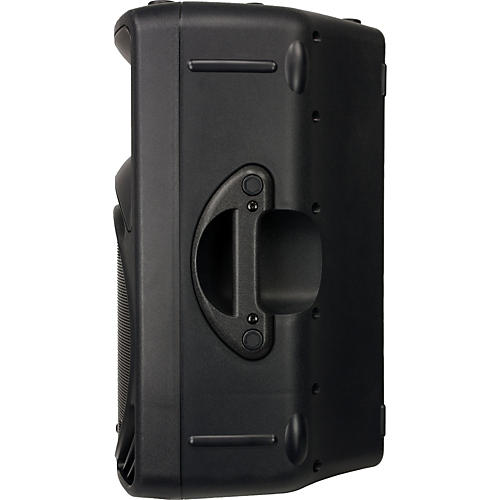

Mackie C300z Passive Speaker (Black)

A passive version of the popular SRM450.

The passive Mackie C300z 2-Way Speaker is equipped with a 12" high-efficiency woofer and a 3" voice coil with a 1-3/4" titanium diaphragm compression driver. The C300z handles a massive 600W of peak power at 8 ohms, and has a 45Hz-20kHz frequency response for clear sound across the spectrum. The C300z speaker's EQ and crossover points are meticulously chosen so that beam-width patterns match in both drivers, delivering natural sound at all volume levels. The Mackie C300z is pole-mountable and flyable. With its trapezoidal shape the C300z speaker can also be used as a stage monitor. Precision Tuned by the Speaker Brains at EAWMackie's C Series passive loudspeakers represent Mackie's first lightweight passive speakers tuned exclusively by the EAW loudspeaker engineering team-a team with more than 25 years of high-output loudspeaker expertise, having created loudspeaker systems for critical applications as diverse as the Super Bowl, Iron Maiden, and the Pope. Although loudspeakers for these mega-systems cost exponentially more than the stalwart C300z, many of the same concepts have been applied, namely: designing custom 12" LF drivers with a frequency range from 50Hz-3000Hz and a 3" voice coil that can take a pounding. It also has a 1.75" high-frequency titanium driver and horn providing a wide, controlled dispersion pattern, and precise reproduction of the critical 1000Hz-20,000Hz upper mid-range and high frequencies.Crossovers Tuned to PerfectionTuning a crossover (i.e. voicing a system), involves dozens of critical decisions that many manufacturers overlook. In the end, it is all about balancing the design so that you get the best subjective results from the speaker while maintaining a good technical implementation. The crossover in the C Series is a unique Low Impedance Compensated Crossover (LICC) design with an asymmetrical slope. With EQ and crossover points meticulously chosen so that beam-width patterns match in both drivers, C Series loudspeakers offer natural sound at all volume levels.Ultra-Wide DispersionEver been to a show where the music sounds great in front, but craps out once you get to the back or sides of the room? The C300z was given a multi-cell horn throat aperture to avoid that situation. Sure, it's hard to say, but what it does is allow for much wider and more even dispersion of high and mid frequencies-so the wallflowers get the same great listening experience as those up front.Better Than Your Average BoxAnyone with a factory can build a box and stick some speakers in it (and that's just what many do). But low-frequency transducers in square boxes can create resonances that reflect off the rear wall and pass through the woofer cone out of phase, and ready to mess up your sound. The C300z enclosure is an asymmetrical monocoque design with no parallel surfaces, causing mid- and high-frequency resonances to be reflected at angles into internal damping materials, instead of interfering with the woofer doing its thing.Superb Floor MonitorA good floor monitor plays loudly without generating feedback through vocal microphones. A poor floor monitor, on the other hand, will generate feedback just about the time you turn it up to a useable level. Floor monitor feedback is often caused by uneven frequency response and dispersion; some frequencies arrive at the microphone much louder than others. These spikes are what trigger feedback as the floor monitor volume is increased. The Mackie C300z has incredibly smooth, spike-free response and dispersion over a wide range of treble frequencies, so you can increase its volume without boosting those nasty, feedback-inducing spikes.
Features
Speaker configuration Active/passive: Passive Type: 2-Way full range LF driver: 12" MF driver: Not applicable HF driver: 1.75" TitaniumPower capacity 8 Ohms program/peak: 150W/300W 4 Ohms program/peak: Audio Frequency response: 40Hz - 20kHz Coverage pattern: 90 x 40 Max SPL: 128 dBInputs XLR: Not applicable TRS: Not applicable TS: 1/4" RCA: Not applicable SPEAKON: 1Output/thru XLR: Not applicable TRS: Not applicable TS: 1/4" RCA: Not applicable SPEAKON: 1Enclosure Cabinet material: Polyptopelene Width: 19" Height: 27" Depth: 17" Weight: 66 lb.
Get renowned Mackie sound quality in a lightweight package. Order a C300z today!
C300z Passive Speaker (Black) Specifications:
Frequency response: (-3db): 55Hz-18kHz
Frequency range (-10 db): 45Hz-20kHz
Maximum spl long-term @ 1m: 123dB
Low-frequency crossover type: 24dB/octave, time offset corrected
High-frequency crossover type: 24dB/octave
Crossover frequency: 1800Hz
Audio
Input Type: Speakon-style NL4 jack, 1/4" TS phone jack
Input Impedance: 8 ohms
Power Handling: rms: 300 watts, music: 500 watts, peak: 750 watts
Operating Temperature Range: -10C to 45C (14deg;F to 113deg;F)
Transducer Specifications
Low-Frequency Transducer
Diameter: 12"/300mm
Voice Coil Diameter: 3.0"/75mm
Sensitivity: (1W@1m) 98dB
Nominal Impedance: 8 ohms
Power Handling: 300 watts
Frequency Range: 50Hz - 3000Hz
High-Frequency Driver and Horn
Diaphragm Diameter 1.75"/44.5mm
Exit Throat Diameter 1"/24.5mm
Diaphragm Material Titanium
Sensitivity (1W@1m): 106dB
Nominal Impedance: 8 ohms
Power Handling: 150 watts
Frequency Range: 1000Hz-20000Hz
Horn Type: Composite: Exponential and Conical
Mouth Size: 12"/305mm W x 7"/178mm H
Horizontal Coverage: 90 ±10 (1kHz-20kHz)
Vertical Coverage: 45 ±10 (2.8kHz-20kHz)
Safety Features
Over-excursion protection: second-order high-pass filter
Driver protection: dynamic protection for compression driver
Construction Features
Basic design: asymmetrical trapezoidal
Material: polypropylene
Finish: grey, textured finish
Handles: one on left side, one on top
Grille: perforated metal with weather-resistant coating
Physical Properties
Dimensions (W x H x D) 15.4" x 26" x 14.8"
Weight: 43 lb.
