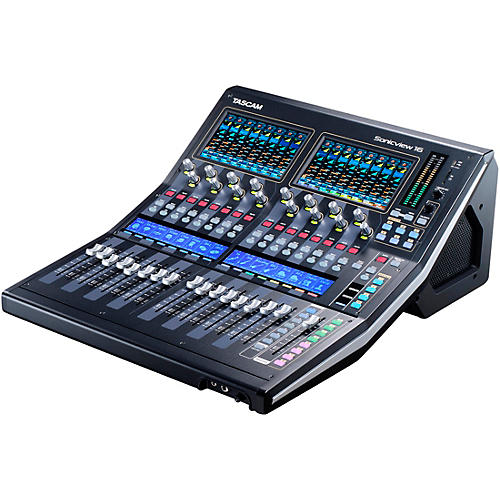

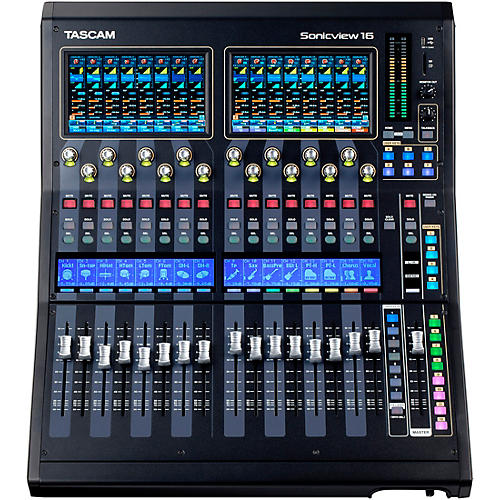

TASCAM Sonicview 16XP 16-Channel Multi-Track Recording & Digital Mixer

Versatile recording and mixing station that's also rackmountable.
The TASCAM Sonicview 16XP mixing station offers 16 physical input channels with motorized faders and top-of-the-line HDIA microphone preamps. With its smaller frame size, the SonicView 16XP can be rack-mounted and features 44 input channels (40 mono channels and 2 stereo channels), 22 flex output buses and the L/R main bus. In addition to its integrated audio interface, the Sonicview 16XP comes with an integrated IF-MTR32 multi-track recording card, enabling you to capture 32 channels directly to an SDXC card. The SD recorder supports simultaneous 32-channel punch-in/punch-out, pre-record, auto-record and markers. Best of all, it automatically saves and closes the file every 60 seconds during recording to safeguard against data loss, so you can let the recorder do it’s job worry-free while you focus on mixing.

The Sonicview 16XP offers motorized channel faders in two banks of eight, plus a motorized stereo fader for the main bus. Above each bank of channel faders is a color touch panel that allows you to view entire mixer channels, or get down to details, controlling each parameter with your fingertip. The mixer also delivers the finest audio performance in its class, thanks to a 54-bit float-point FPGA mixing engine; continuous, high-definition 32-bit/96kHz sampling; and 32-bit analog-to-digital converters. The mixing engine’s float-point processing makes it possible to flexibly change levels without compromising resolution and ensures ultralow latency, even in analog-to-analog connections. The result is no-compromises performance, including with Dante networks and in-line monitoring systems.
Features
TASCAM VIEW (Visual Interactive Ergonomic Workflow) interface supports intuitive operation with three different view system
Multiple displays with two 7" touch panels
44 input channels (or 40 mono input channels and 2 stereo input channels)
22 flexible output buses and main L/R bus with 31-band graphic EQ
96 kHz, 54-bit float-point FPGA mixing engine
Ultra-low latency: 2 x samples (20.8µS) in mixing engine, 0.51 ms analog-to-analog
32-bit/96kHz AD/DA conversion
TASCAM Class 1 HDIA microphone preamplifiers
32-in/32-out, 32-bit/96kHz USB audio interface
Built-in 32-track SDXC recorder
64-in/64-out built-in Dante interface; supports redundancy and DDM, AES67 and SMPTE ST 2110 interoperability
16 mic/line inputs (up to +32 dBu), 16 XLR line outputs with flexible routing
4 multi-effects processors
TASCAM Sonicview Control software for macOS/Windows/iPadOS enables remote control and off-line editing
Two TASCAM expansion slots

Order the SonicView 16XP today.


Sonicview 16XP 16-Channel Multi-Track Recording & Digital Mixer Specifications:
Input: 52, Monaural: 40, Stereo: 2 (Stereo), FX Return: 4 (Stereo)
Bus: 32 [AUX/GROUP switchable MIX buses: 22, MAIN L/R buses: 1 (stereo), FX send buses: 4 (stereo)
Built-in FX: 4
Input Port
96kHz up to 152 ports
48kHz up to 248 ports
MIC/LINE: 16
Stereo (RCA): 4 (2 stereo)
Dante 32 (96kHz), 64 (48kHz)
SLOT 32x2 (96kHz), 64x2 (48kHz)
USB Audio: 32
Built-in player: 2 (1 stereo)
Output Port

96kHz up to 148 ports
48kHz up to 244 ports
USB Audio 32
MONITOR OUT (analog) 2 (1 stereo)
Built-in recorder: 2 (1 stereo)
Input/Output Port
Analog insert I/O: 2 I/O (MIC/LINE input 15/16)
