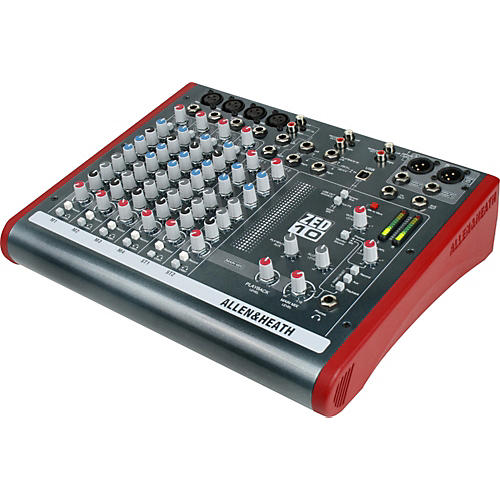

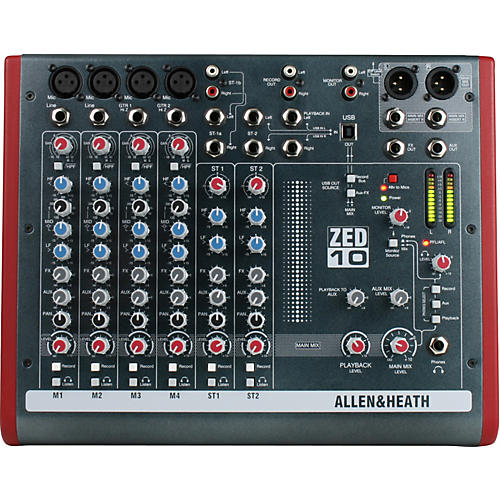

Allen & Heath ZED-10FX 6-Channel USB Mixer With Effects

Small-format mulitpurpose USB-equipped mixer with 10 inputs and built-in effects.

The ZED-10FX is an amazing, compact desktop mixer, ideal for small band mixing. It is ultra portable for carrying to the gig, and can be used for recording live or in the studio. Guitars can be plugged in directly to the mixer using the specially designed high-impedance inputs, while the mixer has two stereo inputs for MP3/CD players or keyboards. It is also equipped with professional XLR main stereo outputs and a flexible monitoring section with headphone and speaker feed outputs. Unlike it's sibling, the ZED-10, the ZED-10FX also boasts a set of fabulous effects to give shimmering reverbs and enhance your sound.The ZED-10FX is great for live mixing. The layout makes it very simple to use and easy to achieve a great sound. It can be used for recording a live show, and can also be used for an audio project at home that you can build up track by track using the USB digital audio interface.The flexibility, quality and cost of this mixer makes it stand out from the crowd. You can plug your guitars or instruments straight into the class A discrete FET high impedance inputs, it can accommodate up to four microphones, two stereo sources with MP3 player compatibility, and separate 2-track record outputs. It also has a stereo playback input for 2-track replay or perhaps interval music from a CD player, XLR main stereo outputs with inserts, comprehensive monitoring with headphones, and separate monitor speaker outputs, 48V microphone phantom power, DI level switching for sub mixing, and last but not least, the same digital effects algorithms as those used on Allen & Heath's flagship digital consoles costing 150 times as much.
Features
4 mic/line, 2 with Class A FET high impedanceNeutrik mic XLRNeutrik 1/4" jacks3-band EQ with MusiQ2 AUX Sound image panIlluminated PFL indicatorStereo returns & playbackAll inputs with level control12-bar metersProfessional FXResponsive 3-band, swept mid EQ with MusiQ2 stereo sources with MP3 player compatibilitySeparate 2-track record outputsStereo playback input for 2-track replayXLR main stereo outputs with insertsComprehensive monitoringConfigurable USB stereo audio in/outStereo monitor outs48V microphone phantom powerDI level switching for sub mixing
Add one of these solid mixer to your setup. Order today.
ZED-10FX 6-Channel USB Mixer With Effects Specifications:
Send options: Main Mix left + Right (post master level, AUX + FX bus (AUX is a pre-fade send, FX is a post fade send), and Record bus left + right (separate stereo bus to Main Mix)
Return options: To playback input (through jack socket break contacts)
To stereo 2 channel (through jack socket break contacts)
Operating Levels: Inputs
Mono Channel (XLR) Input: -10 to -60dBU for nominal (+11dBu in max)
Stereo input (Jack or phono sockets): 0dBu nominal (control = Off to +15dB)
Outputs
L/R Outputs (XLR): 0dBu nominal + 21dBu maximum
AUX & FX Outputs (Jack sockets): 0dBu nominal. +dBu max.
Record & Monitor Outputs (phono sockets): 0dBu nominal. +21 dBu maximum
Frequency Response
Mic in to Mix L/R Out, 30dB gain: + 0.5/-1dB 10Hz to 30kHz
Line in to Mix L/R out 0dB: 10Hz to 30kHz
Stereo in to Mix L/R out: +0.5/-1dB 10Hz to 30kHz
THD+N
Mic in to Mix L/R Out, 10dB gain 1kHz + 10dBu out: 0.002%
Mic in to Mix L/R Out, 30dB gain 1kHz: 0.01%
Line in to Mix L/R OUT 0dB gain 0dBu 1kHz: 0.003%
Stereo in to Mix L/R out 0dBu +10: 1kHz: 0.002%
Guitar Input to Mix L/R Out, 0dBu, Boost OUT: 0.015%
Guitar input to Mix L/R Out, 0dBu, Boost IN: 2% Second Harmonic
Headroom
Analog headroom from nominal (0Vu): 21dB
USB in & out headroom from nominal (0Vu): 14dB
Noise
Mic Pre EIN @ max gain 150R input Z 22–22kHz: - 127dBu
Mix L/R out, L/R faders = 0, levels min, 22–22kHz: -96dBu
Mix L/R out, L/R faders = 0, Levels min, 22–22kHz: -96dBu
Dimensions
Measurements (DxWxH): 10.8" x 3.7" x 13"
Weight: 3.3 kg
