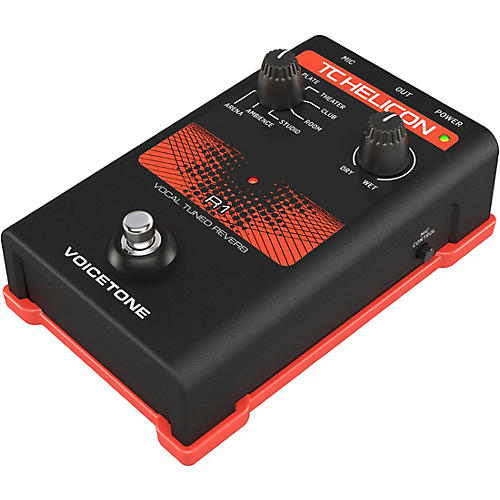

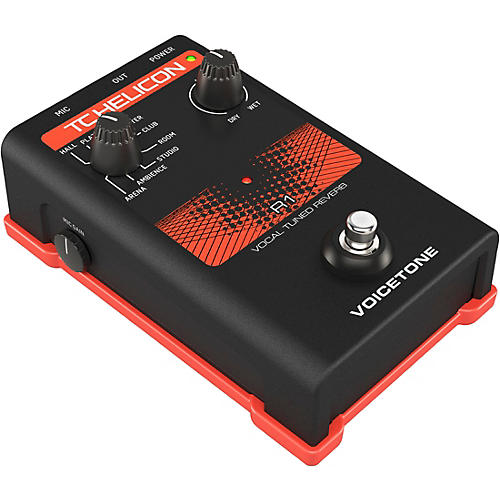

TC Helicon VoiceTone Single R1 Vocal Tuned Reverb Effects Pedal

Easily adds studio reverb polish to live vocals by offering pro acoustic spaces from lush halls to tight ambience.

The TC Helicon VoiceTone Single R1 packs the power of professional studio reverb into a compact, easy-to-use vocal pedal. Optimized for vocalists, the Single R1 features eight pre-programmed reverb styles to add dimension and space to your voice. Just plug in your mic and you'll be surrounded by lush, tailor-made ambience, whether you're performing on stage or tracking in the studio.

Recreate Iconic Studio Spaces
The Single R1 comes loaded with eight reverb presets designed specifically for vocals. From short rooms to cavernous halls, each algorithm is meticulously crafted to complement your voice with a balanced blend of initial reflections, decay time and tail. You'll find lush reverbs reminiscent of famous studios like the live chamber at Capitol Records and the crystalline plates at Abbey Road.

Simple Controls Keep the Focus on Your Performance
Despite its advanced processing, the Single R1 is blissfully easy to use. Just plug your mic into the XLR input, connect to your PA or mixer and you're ready to go. The single knob adjusts the wet/dry balance, giving you fine control over the reverb depth. No complex menus or parameters to scroll through. The Single R1's streamlined interface keeps the focus on your singing, not your pedalboard.

Refine Your Sound With USB Connectivity
While the Single R1's presets sound fantastic right out of the box, you can fine-tune them even further by connecting to your computer via USB. The free R1 editor software gives you control over parameters like decay time, early reflections and EQ shaping. Tweak to your heart's content until the reverb is just right. With the R1's smart design and studio-grade processing, your voice will shine through any mix.
Features
Brings studio reverberation to live performanceConnects between your mic and mixerHigh-quality signal path and tough enclosureCan be chained to additional VoiceTone SinglesMic-Control offers remote on/off via TC Helicon MP-75 microphoneStudio-quality micpre with phantom powerBalanced XLR outputRecessed gain knob that prevents accidental bumps on stageUSB for connecting to VoiceSupport for added tips, tricks, support and updatesDie-cast steel designRubberized baseAudio performance to rival high-end front-of-house mixersReverb Styles:HallPlateTheaterClubRoomStudioAmbienceArenaIncluded with VoiceTone R1Power supplyUSB cableUser guide1-year warranty parts and labor
Take your voice in a new direction with more dimensions. Order today.
VoiceTone Single R1 Vocal Tuned Reverb Effects Pedal Specifications:
Control
Reverb style
Reverb mix
Footswitch on/off
Mic Control on/off
Size
Height: 5.4" (140 mm)
Width: 3.5" (90 mm)
Depth: 2.3" (60 mm)
Weight
Weight: .92 lb. (0.42 kg)
Construction
Two-part die-cast metal
Rubberized base

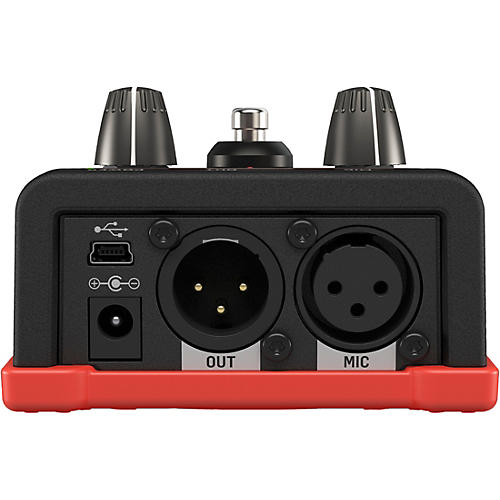

Analog Inputs
Connectors, balanced: Mic.: XLR
Mic Input Level @ 0dBFS: -42dBu to +1dBu
EIN @ Max Mic Gain Rg = 150 ohm: -126 dBu
Mic input SNR: >104dB
Guitar Input impedance: 1 mohm
Guitar Input Level @ 0 dBFS: -7 dBU to 17 dBu
Guitar Input SNR: >115dB
Analog Outputs
Output Impedance, Bal./Unbal.: 200/100 ohm
Output Full Scale: +1dBu
Dynamic Range: >104dB, 20Hz to 20kHz
Frequency Response: +0/-0.3dB, 20Hz to 20kHz
Control
USB for firmware and control
Mic Control using TC Helicon MP-75
