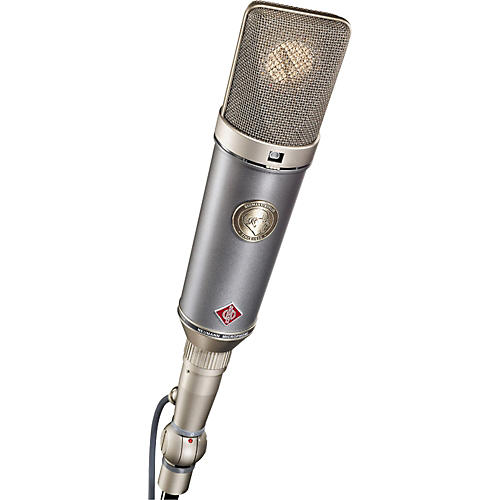

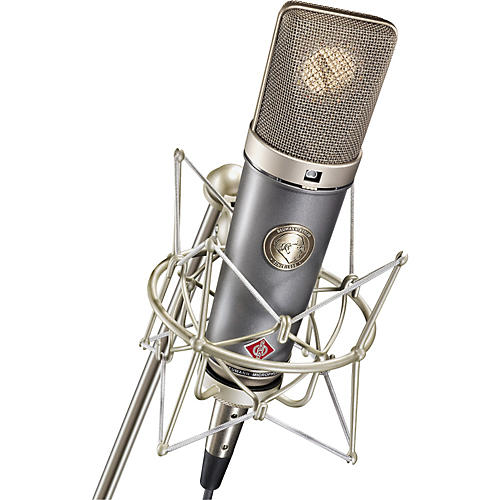

Neumann TLM 67 Condenser Microphone

A classic remade for the sound of a new generation.

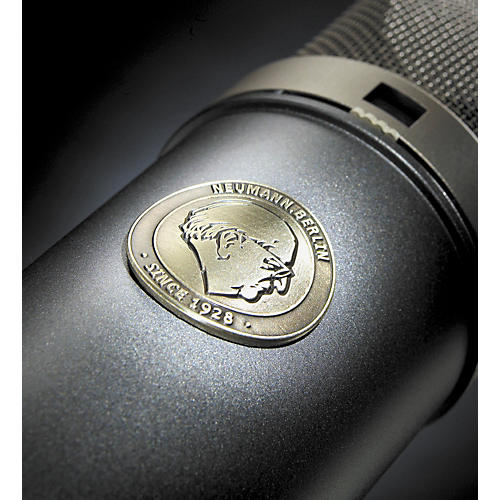

The Neumann TLM 67 is a large-diaphragm condenser microphone in the classic Neumann style. The stylish pearl-gray of the microphone body combined with the classic Neumann nickel lends the TLM 67 microphone a touch of distinctive individuality.The letters TLM stand for transformerless microphone. In the Neumann TLM 67 mic, an electronic circuit is used rather than a conventional output transformer. Like a transformer, the circuit ensures good common mode rejection, effectively suppressing interference signals that affect the balanced modulation line. The TLM 67 microphone can operate at sound pressure levels of up to 105 dB without distortion, and has a dynamic range of 94 dB (A-weighted), without the use of the pre-attenuation switch.The Neumann TLM 67 is an extremely versatile microphone. Its 3 switchable directional modes (omnidirectional, cardioid and figure-8), selectable 10 dB pre-attenuation and high-pass filter permit detailed adjustments, depending on your recording needs.In the world of studio microphones, the numbers 47, 67 and 87 have associations that inspire enthusiasm among professionals. The classic Neumann U 67 was the successor to the famed U 47, which was Sir George Martin's favorite mic for recording the Beatles, and the U 87 has become the most used vocal mic in recording history. It is no coincidence that the name of the new Neumann TLM 67 microphone contains the number 67. In many respects, the Neumann TLM 67 mic is based on the workhorse mic of the 1960s: the legendary Neumann U 67 mic. Like the U 67, the Neumann TLM 67 incorporates Neumann's K 67 capsule. In addition, the special new circuit design closely reproduces the sound characteristics of the classic U 67 mic, without the use of tubes. The legendary and frequently imitated design of the Neumann U 67 was the first to be developed by Neumann employees in collaboration with the famous German designer, Wilhelm Braun-Feldweg. The design of the Neumann TLM 67 microphone represents a contemporary development of that of the U 67, transferring its positive impact to the present era. The enhanced exterior design thus links past and future microphone design trends.On the occasion of its 80th anniversary, the Neumann company is honoring its founder, Georg Neumann, with a badge on the front of the TLM 67 microphone. The distinctive Neumann attraction is conveyed in every detail of the microphone.ApplicationsDue to its extensive control features, the TLM 67 is suitable for a wide range of applications. In addition to its primary role as a vocal microphone for all types of music and spoken voice, in orchestral recordings the TLM 67 can be used as a main microphone and as a spot microphone for individual instruments.Acoustic featuresThe microphone is addressed from the side on which the Neumann logo is located.A large wire mesh grille encloses the elastically mounted double diaphragm capsule. The directional characteristics omnidirectional, cardioid or figure-8 can be selected via a switch below the grille. The selected setting is indicated by a symbol shown in a window above the switch.Filter and pre-attenuationThe pre-attenuation switch on the back of the microphone can be used to reduce transmission levels by approx. 10 dB. It should be used only when there is a risk of overloading following devices due to very high sound pressure levels. Use of the switch does not increase the dynamic range of the microphone, but rather shifts it by 10 dB, to higher sound pressure levels. The other switch on the back of the microphone can be used to change the cutoff frequency of the built-in high-pass filter, so as to suppress the effects of impact sound and wind noise, or to compensate for the proximity effect.Operational reliabilityElastic mounting of the capsule supplies protection from the transmission of structure-borne noise. If required, the EA 87 elastic suspension and WS 87 windscreen are available as accessories, for further suppression of structure-borne and wind noise. The PS 15 or PS 20 a popscreen can be used if the microphone is to be addressed at close range.*The design of the microphone is a registered design of the Georg Neumann GmbH in certain countries.
Features
Sound characteristics based on the legendary U 67Three switchable directional characteristics (omnidirectional, cardioid and figure-8)Switchable high-pass filter and pre-attenuationTransformerless circuit technologyNew dual-color exterior designIncludes a wood storage box
The classic Neumann U 67 was the successor to the famed U 47, which was Sir George Martin's favorite mic for recording the Beatles. The TLM 67 brings that sound into the modern age — and to your recordings, after you've ordered your TLM 67.
TLM 67 Condenser Microphone Specifications:
Acoustical operating principle: Pressure gradient transducer

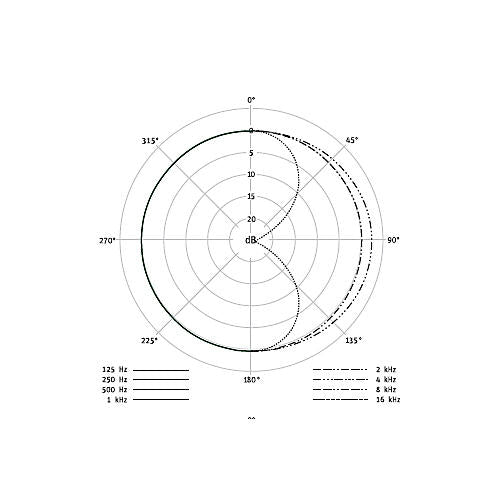

Directional pattern: Omni/cardioid/figure-8

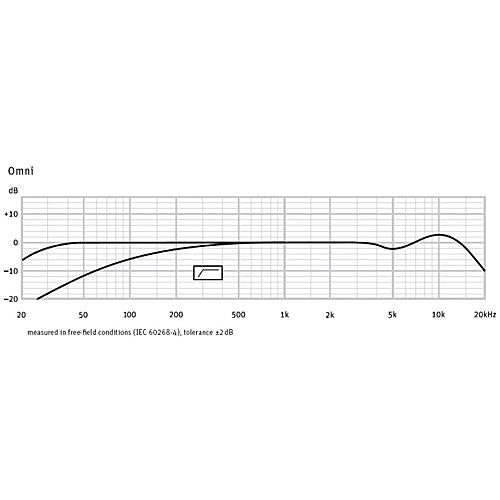

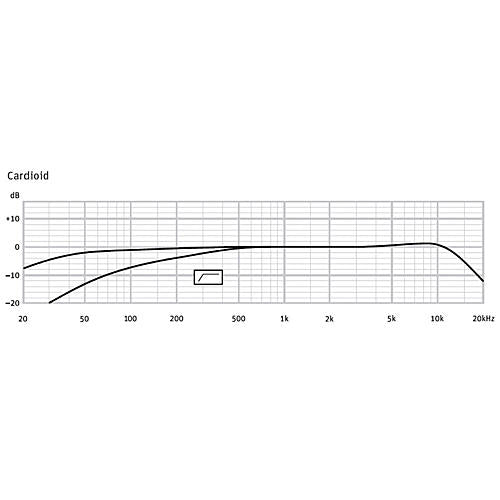

Frequency range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm: 10/18/9 mV/Pa
Rated impedance: 50 ohms
Rated load impedance: 1 kohms
Equivalent noise level, CCIR1): 29/24/30 dB
Equivalent noise level, A-weighted1): 16/11/17 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 65/70/64 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 78/83/77 dB-A
Maximum SPL (tube characteristic) for THD < 0.5 %2): 110/105/111 dB
Maximum SPL (tube characteristic) for THD < 5 %2): 130/125/131 dB
Maximum output voltage: -1 dBu
Dyn. range of the mic. amplifier (A-weighted, 0.5 %2)): 94 dB
Dyn. range of the mic. amplifier (A-weighted, 5 %2)): 104 dB
Power supply: P48
Matching connector: XLR 3F
Weight: 1.08 Lb., (490 g)
Diameter: 2.20", (56 mm)
Length: 7.87", (200 mm)
