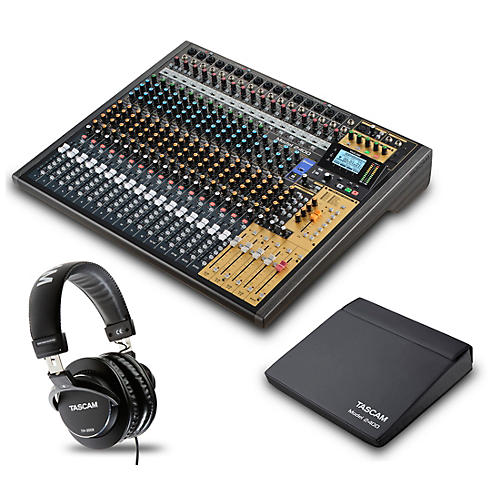

TASCAM Model 2400 24-Channel Multitrack Recorder With Analog Mixer & USB Interface

A feature-packed studio hub for tracking and mixing.


The TASCAM Model 2400 is a powerful 24-channel recording and mixing console that gives you a professional studio control surface with an onboard multitrack recorder and USB audio interface. The Model 2400 streamlines your workflow for recording, overdubbing, mixing and mastering. With 16 boutique Ultra-HDDA microphone preamps, a 12-channel compressor, 4-band EQ and a bevy of digital effects, you have an incredible amount of analog processing at your fingertips to shape your sound.

Record and Mix Without a Computer
The built-in 24-track recorder uses SD cards to capture your tracks without needing an external DAW, freeing you from the constraints of a software interface. You have the hands-on experience of a traditional console with the convenience of a standalone multitrack recorder. The intuitive controls and high-end components give you a responsive, tactile mixing experience that inspires creativity.

Sculpt Your Sound With Powerful Processing
With 12 channel strips loaded with boutique compressors and 3-band EQs, you have ample tools to tweak each track. The 4-band internal EQ and dynamics processing on the main bus let you finesse your overall mix. An array of 16 digital effects like reverbs, delays and modulation also give you options for adding ambience and polish. Between the precision analog components and digital effects, you can achieve any sound you want.

Flawless Integration With Your DAW
Although the Model 2400 operates as a standalone mixer and recorder, it also functions as a control surface for your DAW via USB. The 24x22 audio interface lets you send and receive signals between the Model 2400 and your DAW with no latency. Dedicated transport controls on the Model 2400 give you hands-on control over playback, record and other functions in your DAW. You get the benefits of an analog console paired with the advanced features of your favorite digital audio workstation.

Premium Components for a Pure Signal Path
TASCAM outfitted the Model 2400 with boutique components to achieve maximum sonic quality. The Ultra-HDDA microphone preamps deliver a clear, musical signal with an ultra-low noise floor. High-end analog EQs and compressors on each channel strip shape your tone with transparency. Additionally, the precision faders provide smooth, accurate control over levels. From input to output, your audio travels through an uncolored signal path for pure, authentic sound.

Features
24-track recording via SDXC card, punch-in/out enabled24 inputs/22 outputs, USB audio interface22 inputs with 16 XLR mic preamps, TASCAM HDDA technologyFive AX sends, four stereo subgroups, main L/R bus
Order the Model 2400 24-channel multitrack recorder today for your professional recording studio.
Model 2400 24-Channel Multitrack Recorder With Analog Mixer & USB Interface Specifications:
Recorder specifications
Recording media/file systems
SD/FAT16
SDHC/FAT32
SDXC (up to 512GB) /exFAT
NOTE: Class 10 or higher?
Recording format: WAV (BWF)?
Playback format: WAV (BWF)
Sampling rate: 44.1kHz/48kHz
Quantization bit depth: 16-bit/24-bit
Maximum number of recording tracks: 24 (22 channel inputs + 2 stereo mix)
Analog audio input ratings
Mic input jacks (1–12, 13, 15, 17, 19)
Connectors: XLR/TRS combo jack type
XLR (1: GND, 2: HOT, 3: COLD)
Maximum input level: +10dBu (at LEVEL "MIN")
Nominal input level: ?8dBu (at LEVEL "MIN")
Minimum input level: -58dBu (at LEVEL "MAX")
Gain adjustment range: 0 to 50dB
Input impedance: 1.9 k? (CH1-12), 24 k?(CH13-19)
Phantom power supply: +48V *On/off for every 4 channels
Line (TRS) jacks (1–22)
Connectors: XLR/TRS combo jack type
6.3mm standard TRS jack (balanced)
(Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: +22 dBu
Nominal input level: +4dBu
Gain adjustment range: -10 to +40dB(CH 1–12)
-20 to +30dB (CH 13/14 to 19/20)
Fixed (CH 21/22)
Input impedance: 22 k? (mono), 11 k? (stereo)
INST input (TRS) jacks (1-2) *When INST on
Connectors : XLR/TRS combo jack type
6.3mm standard TS jack equivalent (unbalanced)
(Tip: HOT, Ring: GND, Sleeve: GND)
Maximum input level: +19.8dBV
Nominal input level: 1.8dBV
Gain adjustment range: -10 to +40dB (CH 1–12)
Input impedance: 1 M?
Insert (TRS) jacks (1-12)
Connectors: 6.3mm standard TRS jacks (unbalanced)
(Tip: SEND, Ring: RETURN, Sleeve: GND)
RETURN
Maximum input level: +18dBu
Nominal input level: +0dBu
Input impedance: 15 k?
SEND
Maximum output level: +18dBu
Nominal output level: +0dBu
Input impedance: 100 ?
Main bus insert (TRS) jacks (MAIN L/R)
Connectors : 6.3mm standard TRS jacks (unbalanced)
(Tip: SEND, Ring: RETURN, Sleeve: GND)
RETURN
Maximum input level: +18dBu
Nominal input level: +0dBu
Input impedance: 9 k?
SEND
Maximum output level: +18dBu
Nominal output level: +0dBu
Input impedance: 100 k?
Talk-back mic input jack
Connector : XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Maximum input level : -22dBu (at LEVEL "MIN")
Minimum input level : -65dBu (at LEVEL "MAX")
Gain adjustment range: 52dB
Input impedance: 2.6 k?
Analog audio output ratings
MAIN OUT L/R (balanced) connectors
Connectors : XLR 3-32 equivalent (1: GND, 2: HOT, 3: COLD)
Maximum output level: +22dBu
Nominal output level: +4dBu
Output impedance: 200 ?
Control Room OUT L/R (pseudo-balanced) jacks
Connectors: 6.3mm standard TRS jacks?
(Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: ?16dBu
Nominal output level: -2dBu
Output impedance: 200 ?
AUX 1 - 5 OUT (pseudo-balanced) jacks
Connectors: 6.3mm standard TRS jacks?
(Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: ?16dBu
Nominal output level: -2dBu
Output impedance: 200 ?
SUB group 1-4 OUT (pseudo-balanced) jacks
Connectors : 6.3mm standard TRS jacks?
(Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: ?16dBu
Nominal output level: -2dBu
Output impedance: 200 ?
Headphone 1/2 jack
Connectors: 6.3mm standard stereo jack?
Maximum output level: 80 mW + 80 mW (32? load)
Recommended headphone impedance : 16 to 600 ?
*: 0dBV=1Vrms, 0dBu=0.775Vrms
Other ratings
CLICK OUT (pseudo-balanced)
Connector : 6.3mm standard TRS jack
(Tip: HOT, Ring: COLD, Sleeve: GND)
* Metronome click output
MIDI
MIDI IN/MIDI OUT
Connectors: 5-pin DIN
Format: MIDI 1.0
USB
Connector:USB Type-B
Transfer format : USB2.0 HIGH SPEED
Device class: Mass storage class???????????????
USB audio class 2.0 (USB class compliant)
USB audio
Sampling rate: 44.1k/48kHz
Quantization bit depth: 24-bit
Number of inputs: 24 channels *Output from this unit
Number of outputs: 22 channels *Input to this unit
Input channel EQ (analog)
Low cut: 100Hz, -18dB/Oct.
High shelf: +/-15dB, 10kHz cutoff frequency
Mid Peaking: +/-15dB, 100 to 8kHz, Q 0.5 fixed
Low shelf: +/-15dB, 60Hz cutoff frequency
Master section EQ (digital)
High shelf: +/-12dB, 1.7k – 18kHz
High Mid: +/-12dB, 32 – 18kHz, Q 0.1 – 17.31
Low Mid: +/-12dB, 32 – 18kHz, Q 0.1 – 17.31
Low shelf: +/-12dB, 32 – 1.6kHz
Master section comp (digital)
Threshold: -32 to 0dB
Ratio: 1:1 to ?:1
Attack: 2 to 200 ms
Release: 10 to 1000 ms
Make-up: 0 to 20dB
Built-in effects section
Type 1: HALL 1, 2: HALL 2, 3: ROOM 1, 4: ROOM 2,
5: PLATE, 6: STUDIO, 7: LIVE?8: DELAY 1, 9: DELAY 2, 10: PING PONG, 11: CHORUS, 12: FLANGER, 13: DELAY + HALL 1, 14: DELAY + HALL 2, 15: CHORUS + HALL 1, 16: CHORUS + HALL 2
NOTE: selected types can be edited and registered in the library.
Footswitch
Connector : 6.3mm standard TRS jack
(Tip: footswitch 2, Ring: footswitch 1, Sleeve: GND)
Audio performance
Frequency Response
20Hz to 30kHz ANALOG
(+0.5/-1.0 dB, MIC IN to MAIN OUT)
20Hz to 20kHz DIGITAL via MTR
(+0.5/-1.0 dB, MIC IN to MAIN OUT)
Equivalent Input Noise
-128dBu (Mono Input Channel, Rs: 150?, GAIN knob: Max, A-weighted)
Total Harmonic Distortion
0.003% (MIC IN to MAIN OUT, nominal input level, +2dBu, 1kHz, GAIN min.)
Crosstalk
80dB, channels
80dB, input and output
(1kHz, PAN fully counter clockwise / fully clockwise)
Maximum Gain
74dB (MIC to MAIN OUT)
54dB (MIC to INSERT OUT)
74dB (MIC to SUB OUT)
75dB (MIC to AUX 1/2 OUT)
24dB (USB/SD to MAIN OUT)
(EQ flatten, PAN fully counter clockwise / fully clockwise)
*: 0dBu= 0.775Vrms
Recording time
Recording format: WAV 16-bit/44.1kHz
24 track: 4 hours 10 minutes (32GB)
WAV 24-bit/48kHz
24 track: 2 hours 33 minutes (32GB)
NOTE: The recording times shown above are not continuous recording times. They are total recordable times for SD/SDHC/SDXC cards
Bluetooth
Output class: Class 2 (about 10m* unobstructed transmission distance)
Supported profile: A2DP
Supported A2DP codecs: SBC, AAC
Supported A2DP content protection: SCMS-T
* The transmission distance is an estimate. The transmission distance may vary depending on the surrounding environment and radio wave conditions.
Operating system/computer system requirements
Check the TEAC Global Site (http://teac-global.com/) for the latest information about supported operating systems.
Operation with each OS was confirmed with standard system setups that met the following conditions. Operation is not guaranteed, however, with all systems that meet the following conditions.
Windows
Supported operating systems
Windows 11
Windows 10 64-bit
Computer hardware requirements
Windows computer with a USB 2.0 (or higher)
*Operation is not guaranteed using the TASCAM driver with ARM64 CPUs.
Mac
Supported operating systems
macOS 14 Sonoma
macOS 13 Ventura
Computer hardware requirements
Mac with a USB 2.0 (or higher) port
iOS/iPadOS devices
iOS 17/iPadOS 17
iOS 16/iPadOS 16
General
Power: AC 100–240 V, 50/60Hz
Power consumption: 65 W
Weight: 14.0 kg
Operating temperature range: 0 – 40 C
Dimensions
With side panels: 680.5 x 132.5 x 568.0 mm
Without side panels: 638.5 x 132.5 x 568.0 mm
